| Part Number | VB110073 |
| Previous versions | VA110073, VC110073, VD110073 |
| OE number | 12957918010, 129579-18010, B31CND-S0073B, B31CNDS0073B, B31CND-S0073BN |
| Kohler. | 229309 |
| V-Spec. | MY69 |
| Description | Marine, GEN Set |
| CHRA | NZ852836 (NZ852215, NZ870544, B31CND-S0073C, B31CNDS0073C) |
| Turbo Model | RHB31GW-50001GP7NWBRS255A |
| Engine | 4JHLHTE-K2 |
| Angle α (compressor housing) | 90° |
| Angle β (turbine housing) | 338° |
| Bearing Housing | NB133339 (Oil Cooled) |
| Turbine Wheel | NB131180 |
| Rotor Assembly | (129403-18770) |
| Comp. Wheel | NB135102 (Ind. 24.8 mm, Exd. 35.5 mm, 5+5 Blades) |
| Back plate | NB133011 (2445104) |
| Heat shield Number | NB137143 |
| Repair Kit | NB139837 (NB139838, NB139922)(2445058, 2445147) |
| Turbine Housing (Water-Cooled) | NB137343 |
| Compressor Cover | NB134113 |
| Turbine Housing AR | 7 |
| Gasket Kit | 2505395 |
| Gasket (turbine inlet) | 210826 (2445288, 2445280, 129477-18100)(Inox Steel) |
| Gasket (turbine outlet) | 210827 (2445274 , 2445185,129322-18100)(Inox Steel) |
| Gasket (oil inlet | (1203715, 1204055)(Paper) |
| Gasket (oil outlet) | 210284 (2455001, 2445107)(Paper) |
| Manufacturer | IHI |
Yanmar

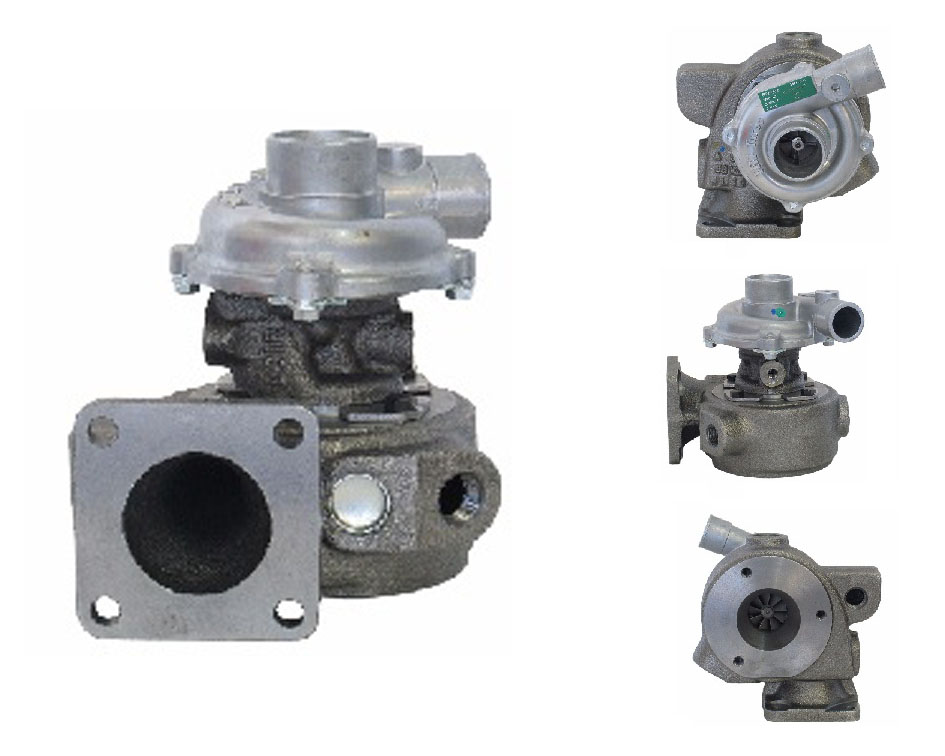

Yanmar Marine RHB31GW SUPART Turbo VB110073 MY69
Applications
Yanmar Marine with 4JHLHTE-K2 Engine
