| Part Number | 452174-5004S |
| Previous Version | 452174-0004, 452174-0003, 452174-0001, 452174-0004, 452174-0005, 452174-0007 |
| OE number | 11033938, 11033937 |
| Description | Volvo A30C Offway, Wheel Loader L150C, Truck/Bus |
| CHRA | 434251-0014 (434251-5014S)(100420001) |
| Turbo Model | GT4288N |
| Engine | TD103 |
| Engine Manufacturer | Volvo |
| Displacement | 9.6L, 9600 ccm, 6 Cylinders |
| Fuel | Diesel |
| KW | 253 HP |
| Bearing Housing | 410310-0004 (410310-0001)(Oil Cooled)(103130001) |
| Turbine Wheel | 436259-0001 (Ind. 82. mm, Exd. 68.1 mm, Trm 69, 11 Blades)(101100001) |
| Comp. Wheel | 434354-0006 (434354-0008)(Ind. 63.45 mm, Exd. 87.00 mm, Trm 9.8, 6+6 Blades, Superback)(102400003) |
| Back plate | 434256-0002 (449014-0005)(104190001) |
| Heat shield Number | 410366-0003 (410366-0004, 410366-0007)(106450003) |
| Repair Kit | 709153-0001 (1102042750, 109450002) |
| Turbine Housing | 441183-0065 |
| Compressor Cover | 434356-0030 |
| Turbine Housing AR | 1.22 |
| Gasket (turbine inlet) | 409123-0002 (310694)(Inox Steel) |
| Gasket (turbine outlet) | 210221 (Stainless Steel) |
| Gasket oil inlet | 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) |
| Gasket (oil outlet) | 210060 (311585, 148062, 2475013) (Paper) |
| Replaces | 4031414, 4033713, 4033713H |
| Manufacturer | Honeywell-Garrett |
Volvo

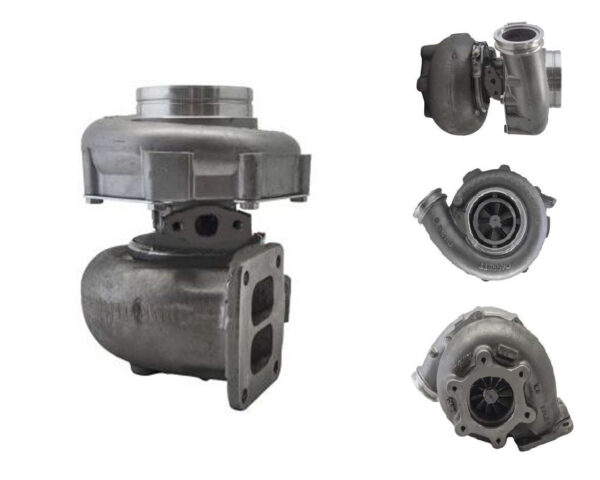

Volvo A30C Offway, Truck GT4288N SUPART Turbocharger 452174-0004
Applications
1995- Volvo A30C Offway with TD103 Engine
