| Part Number | 53039880248 |
| Previous Version | 5303-988-0248, 53039880142, 53039880099. 53039880150. 53039880162, 53039700248 |
| OE Number | 03C-145-701B, 03C-145-701G, 03C-145-701K, 03C-145-701Q, 03C-145-701T, 03C-145-702P, 03C145701B, 03C145701G, 03C145701K, 03C145701Q, 03C145701T, 03C145702P, 03C145703A |
| Year | 05-11 |
| Description | Volkswagen Golf V,GT Polo, Scirocco, Tiguan, Touran |
| Manufacturer Part Number | 53039700248, 5303-970-0248 |
| Turbo Model | K03-2074DAB4.82KCAXM |
| CHRA | 53037100524 (5303-710-0524, 53037100537)(1302003924, 1302003937, 1000030207) |
| Engine | CKMA, BLG, BMY |
| Engine Manufacturer | Volkswagen |
| Displacement | 1.4L, 1390 ccm, 4 Cylinders |
| Fuel | Gasoline |
| Engine Speed | 6000 |
| KW | 103/118/125/140 |
| Bearing Housing | 53031500020 (53031500013)(Water Cooled)(1900011235G) |
| Turbine Wheel | 53031206506 (53031205060, 53031208501, 53031208519)(Ind. 45. mm, Exd. 37.8 mm, Trm 7.51, 11 Blades)(1302003436, 1100016295) |
| Comp. Wheel | 53041232209 (53041232222)(Ind. 37.92 mm, Exd. 54.05 mm, Trm 5.66, 6+6 Blades, Superback)(1302004400, 1200016330) |
| Back plate | 53041515719 (1303043300, 1300016047B) |
| Heat shield Number | 53031652015 (53031652009, 53031652021, 53031652022)(2030016037) |
| Repair Kit | 53037110001 (53037110000)(1302003751, 5000040005) |
| Turbine Housing | 53031009560 |
| Compressor Cover | 53041015303 |
| Compressor Cover | 53041015303 |
| Turbine Housing AR | .94 A/R 3.50 Area |
| Actuator | 58251104188 (2061016758) |
| Gasket Kit | 215385 (2090010062M) |
| NOTE | Intercooler; integrated manifold; water cooled bearing housing |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS HU, DE |
Volkswagen

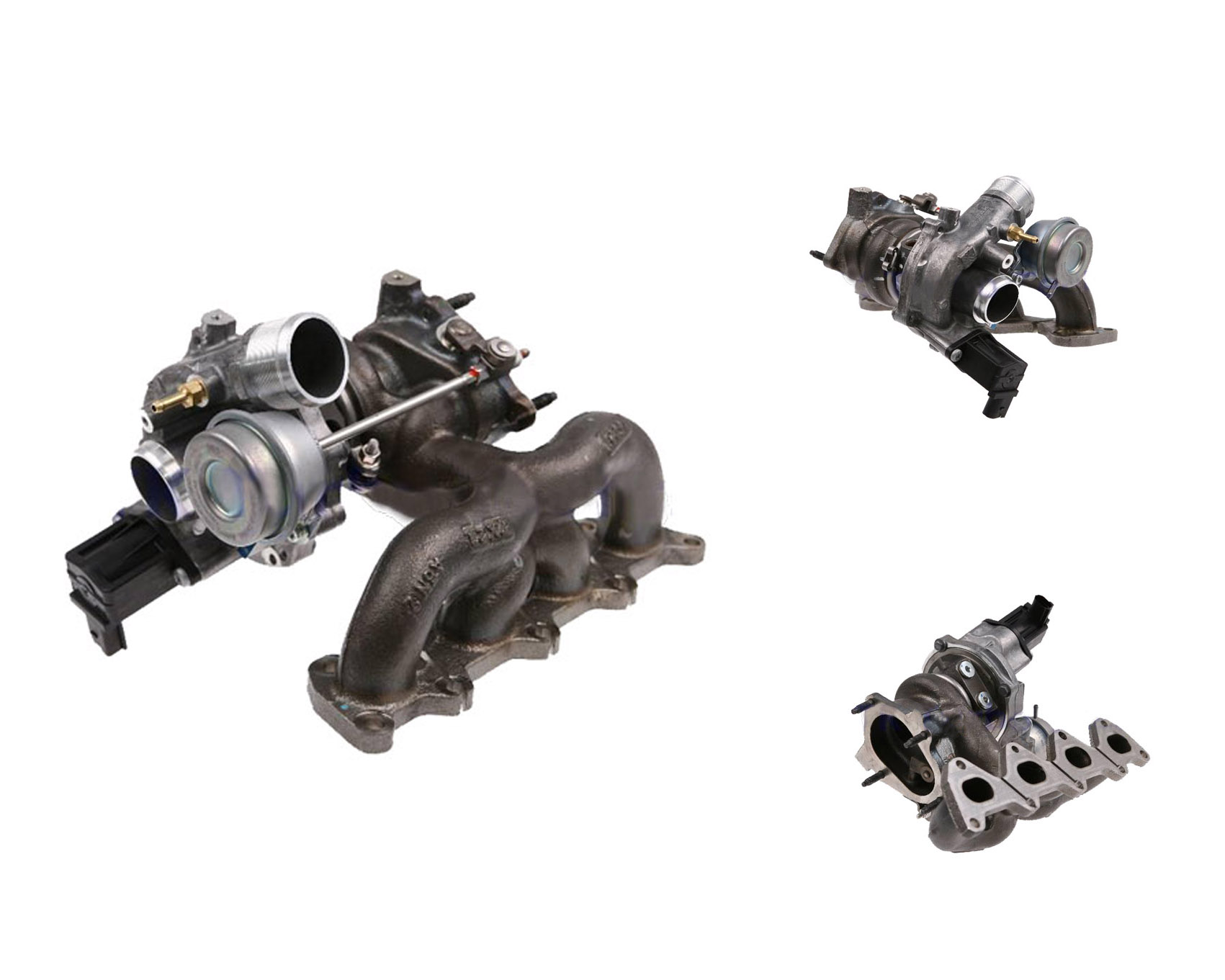

Volkswagen 1.4L TSI SUPART K03 Turbo 53039880248
Applications
2005-09 Volkswagen Golf V 1.4L TSI Engine BLG, BMY
2005-09 Volkswagen Golf V 1.4L TSI Engine BWK
2008- Volkswagen Golf VI 1.4L TSI Engine BWK
2010- Volkswagen Polo V 1.4L TSI Engine CAVE
2008- Volkswagen Scirocco 1.4L TSI Engine BWK
2007- Volkswagen Tiguan 1.4L TSI Engine BWK
2007-10 Volkswagen Touran 1.4L TSI Engine BLG, CAVB
2009- Volkswagen Touran 1.4L TSI Engine CAVC
