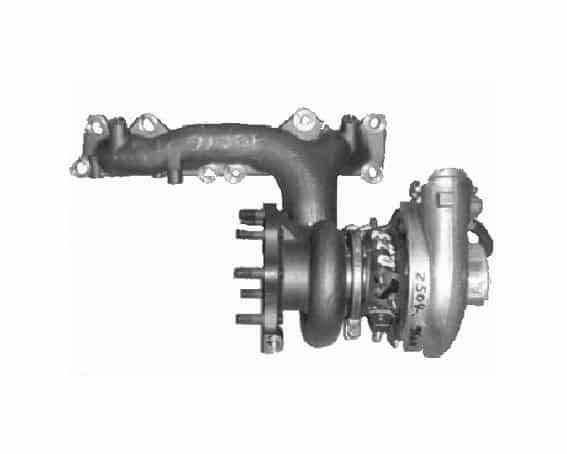

Toyota Caldina CT15B CT20B SUPART Turbo 17201-74091

Applications

2005-07 Toyota Caldina 3S-GTE with ST215 Engine

2005-07 Toyota Caldina GT-Four with ST215 Engine

Category: Tags: , , , , ,
Part Number 17201-74091
Previous Part Number 1720174090, 1720174091
OE Number 17201-74090
Year 2005-07
Description Toyota Caldina 3S-GTE, Caldina GT-Four
Turbo Model CT15B, CT20B
CHRA
Engine ST215
Engine Manufacturer Toyota
Displacement 2.0L, 2000 ccm
KW 191/260 HP
Bearing Housing (Water Cooled)
Turbine Wheel (Ind. 59.99 mm, Exd. 48. mm, 10 Blades, Bore 5.7 mm)
Comp. Wheel (Ind. 38.33 mm, Exd. 64.98 mm, 5+5 Blades, Superback, Bore 5.7 mm)
Back plate (Dynamic seal)
Heat shield Number 17295-54030
Repair Kit
Gasket Kit 215354
Gasket (turbine inlet) 210288
Gasket (turbine outlet) 210295
Gasket (oil inlet and outlet) 210234
Manufacturer Toyota
