| Part Number | 17201-35010 |
| Previous Version | 1720135010 |
| OE number | 17201-35010, 1720135010 |
| CHRA | $320.00 NEW IN STOCK, MADE IN USA |
| Model | CT20, CT-20 |
| Engine Model | 22RTEC; RN55, RN61, RN66, 22RE, 22RTE, 22R |
| Fuel | Gas |
| Displacement | 2.4L, 2000 ccm, 4 Cylinders |
| Trim | SRT, SDT |
| Transmission | All |
| Body | T1, WG, V |
| Elbow(down pipe) | 17291-35010 |
| Manifold | 17141-35120 |
| Bearing Housing | (Water Cooled) |
| Turbine Wheel | (Ind. 59.84 mm, Exd. 47.98 mm, Trm 9.98, 10 Blades) |
| Comp. Wheel | (Ind. 36.37 mm, Exd. 57.02 mm, Trm 4.42, 5+5 Blades, Flatback) |
| Back plate | (Dynamic)(1500320301)(Carbon)(1500320300) |
| Heat Shield, Shroud | 17295-54030 |
| Repair Kit (Carbon Seal & Dynamic CT20) | (Dynamic 1500326754, Carbon 1500326755) |
| Turbine Housing | |
| V Clamp with Nut (Turbine Housing) | 17282-54030 |
| Actuator | 17230-54030R |
| Gasket (turbine inlet) | 210263 (2435051)(Stainless Steel) |
| Gasket (turbine outlet) | 210295 (2435050)(Inox Steel |
| Gasket (oil inlet and outlet) | 210234 (2435022)(1500320790)(Paper) |
| Gasket (water inlet and outlet) | 210233 (2435023)(1500320791)(Paper) |
| Gasket (air outlet compressor housing) | 210262 (Paper) |
| Gasket Kit | 215354 (215332, 2505006)(1900100158, 2090505171, 04175-35010) |
| Inlet Tube | 15407-35010 |
| Outlet Tube | 17291-54020 |
| Listed NEW | $2,133.30 |
| Manufacturer | Toyota |
Toyota

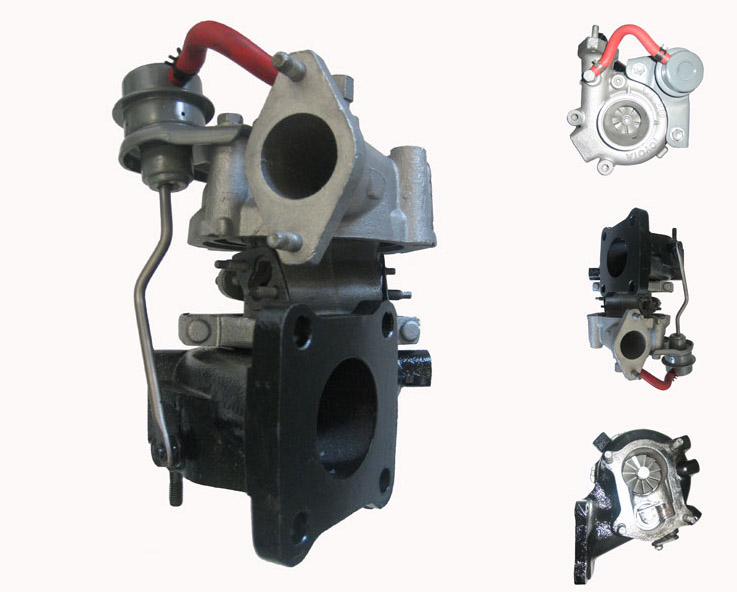

Toyota 4Runner, Truck, Pickup SUPART CT20 Turbo 17201-35010
Applications
1985-89 4 Runner SDT, SR5 Turbo 22RTEC; RN55, RN61, RN66 4 Cyl 2.4L Gas
1985-89 Truck, Pickup SDT, SR5 Turbo 22RTEC; RN55, RN61, RN66 4 Cyl 2.4L Gas
1984-89 Toyota Pickup DLX SDT, SR5 Turbo 22RTEC; RN55, RN61, RN66 4 Cyl 2.4L Gas
