| Part Number | 465825-5002S |
| Previous Version | 465825-0002, 465825-2 |
| Description | Stationary Engines, Industrial |
| OE Number | 90529201001802 |
| CHRA | 447450-0181 (447450-5181S) |
| Turbo Model | T04B, TB4155, T04E |
| Engine | TD229EC6, TD229, TD226, TD232 |
| KW | 166 |
| Fuel | Diesel |
| Bearing Housing | 430027-0025 (312379, 407285-0027, 407285-0038, 407285-0064, 430027-0022, 430027-0048)(Oil Cooled)(1900011104B) |
| Turbine Wheel | 451309-0002 (317640, 407276-0005, 410188-0002, 410188-0005, 410188-0014, 446249-0004, 446905-0001)(Ind. 74.3 mm, Exd. 58.29 mm, Trm 9.19, 11 Blades) |
| Comp. Wheel | 409179-0028 (310099)(8N4781)(Ind. 43.63 mm, Exd. 70.0 mm, Trm 7.79, 8+8 Blades, Flatback) |
| Back plate | 408045-0051 (311708, 312576, 408045-0034, 408045-0035)(1300016009) |
| Heat shield Number | 409299-0001 (311607, 409299-0000) |
| Repair Kit | 468100-0000 (3524796, 168984, 310063, 188006-0000)(1100040760, 5000010041) |
| Turbine Housing | 410270-0377 |
| Compressor Cover | 408173-0028 (8N4783) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Honeywell-Garrett |
Deutz

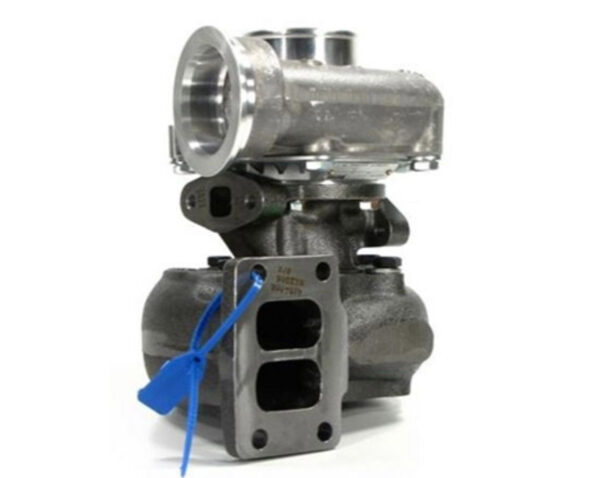

SUPART MWM, Deutz FIAT-ALLIS Industrial Engines T04E, T04B Turbo 465825-0002
Applications
MWM, DEUTZ Stationary Engines TD229EC6
FIAT-ALLIS FR 12B/FR 14 TD229EC6
