| Part Number | 466163-5011S |
| Previous Version | 466163-9014, 466163-9011, 468485-9004, 466163-0011, 468485-0004 |
| OE Number | 6TZ6K682ARM, F4TZ6VK682CARM |
| Year | 1994-97 |
| Description | Truck "F" Series Navistar, Int Harvester |
| Turbo Model | TP3801 |
| CHRA | 449677-0003 (449677-5003S, 1822778C92, 991714C92) |
| Engine | Power-stroke |
| Engine Manufacturer | Ford |
| Displacement | 7.3L, 7300 ccm |
| Fuel | Diesel |
| A-1 CARDONE Part # | F4TZ6V682CARM, F4TZ6VK682CARM without Mounting Pedestal |
| MAHLE Part # | 144TC24010000 A/R Rating 0.84 |
| MAHLE Part # | 144TC24008000 A/R Rating 1.15 |
| ROTOMASTER Part # | 8380101 |
| Turbo + Pedestal (EBPD) | 466163-0011 |
| Angle α (compressor housing) | 230° |
| Angle β (turbine housing) | 310° |
| Bearing Housing | 451899-0001 (Oil Cooled) |
| Turbine Wheel | 445604-0010 (Ind. 76.5 mm, Exd. 69.78 mm, 10 Blades) |
| Comp. Wheel | 446579-0001 (170293, 703697-0001, 726567-0001)(Ind. 59.89 mm, Exd. 79.98 mm, 5+5 Blades, Superback) |
| Back plate | 446467-0001 |
| Heat shield Number | 445608-0001 |
| Repair Kit | 472617-0000 |
| Turbine Housing | 448443-0006 |
| Compressor Cover | 447005-0001 |
| Valve Assembly EBPV | 448180-0001 |
| Gasket (turbine inlet) | 449763-0002 (Inox Steel) |
| Turbine Housing AR | 1.10/1.15 |
| NOTE | turbo + cover plate + pedestal, To prelude turbo, unplug crank sensor and crank engine until oil pressure builds. |
| Replaced By | 466163-0014, 170308 |
| Manufacturer | Honeywell-Garrett |
Ford

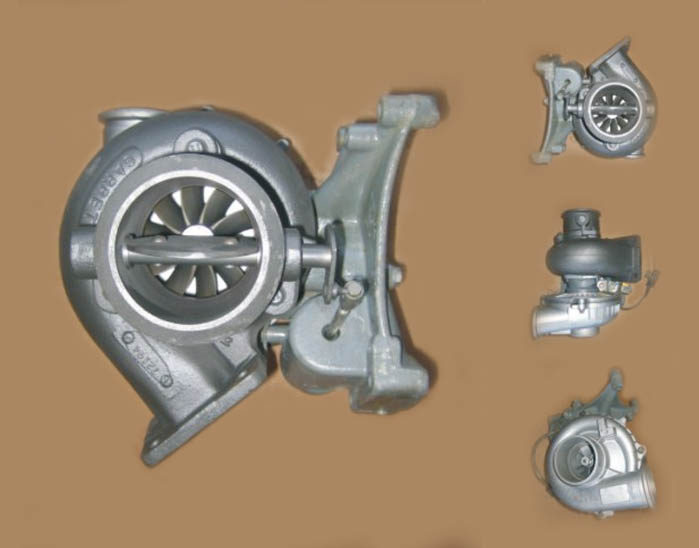

SUPART Ford Truck W/EBPD TP3801 Turbocharger 466163-0011
Applications
1994-97 Ford F-250 Special, F-250 Eddie Bauer, F-250 XL, F-250 XLT with Power stroke Engine
1994-97 Ford E-350 Econoline Base, E-350 Econoline Club Wagon Chateau, E-350 Econoline Club Wagon Chateau HD / E-350 Econoline Club Wagon Custom with Power stroke Engine
1994-97 Ford F Super Duty XL with Power stroke Engine
1994-96 Ford F-350 Eddie Bauer, F-350 Special with Power stroke Engine
1994-97 Ford F-350 XL, F-350 XLT with Power stroke Engine
