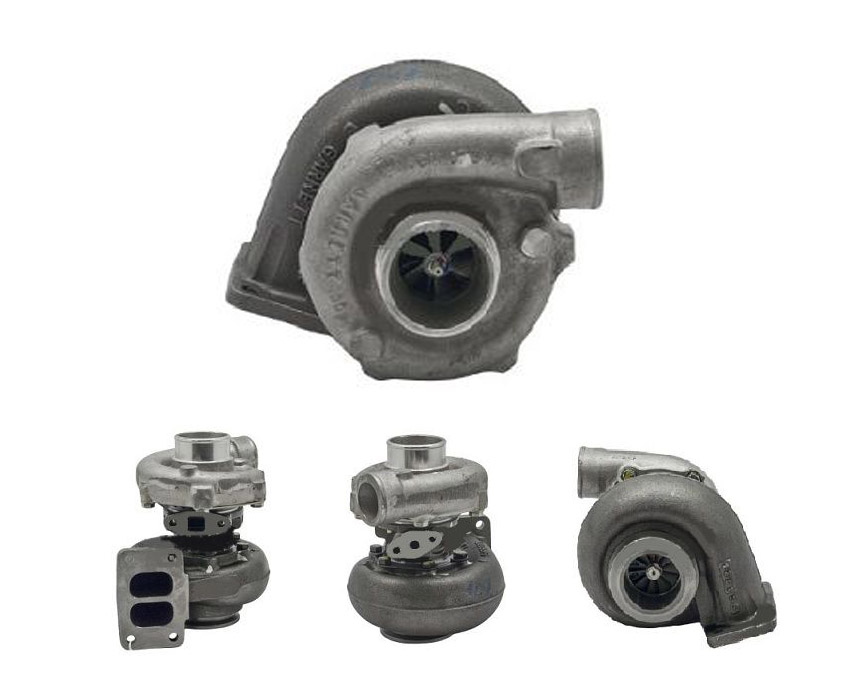

SUPART Ford New Holland, Iveco Agricultural TA3119 Turbo 466746-0004

Applications

1982-91 Iveco Agricultural Tractor 7710 Engine Ford

1982-91 Ford New Holland Agricultural Tractor

Part Number 466746-5004S
Previous Version 466746-0001, 466746-0002, 466746-0003, 466746-0004, 466746-0005, 466746-3, 466746-4, 466746-5
OE number 82853070, 83959435, E6NN6K682BA, E6NN6K682AA
Description Agricultural Iveco, Ford New Holland, Tractor 7710, Ford, Fiat-Allis
CHRA 409172-0017 (81875715, 409172-5017S, 409172-0062, 409172-0034, 409172-0061, E0NN6N684AA, E0NN6N684AAR)
Turbo Model TA3119
Displacement 4.4L, 4400 ccm
KW 97 HP
Bearing Housing 430027-0035 (186880, 186882, 407285-0018, 430027-0031, 430027-0035, 430027-0051)(Oil Cooled)
Turbine Wheel 451310-0003 (451310-0004, 451310-0005, 451310-0006)(Ind. 65. mm, Exd. 48.5 mm, Trm 56, 5+5 Blades)(1100030436, 1100030438)
Comp. Wheel 409096-0008 (409096-0014 , 197611, 103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback, 6+6 Blades)(1100030401, 1200030071)
Back plate 409629-0003 (409629-0001, 409629-0004, 409629-0006)(197340)(1100030300, 1300016007)
Heat shield Number 409627-0000 (103121-0000, 409627-0001)(1100030340)
Repair Kit 468139-0000/707897-0001 (1100030750)(Dynamic)
Turbine Housing 441113-0003
Compressor Cover 409115-0046
Turbine Housing AR 1.06
Gasket (turbine inlet) 409039-0000 (312617, 2405022, 7C7431)(Stainless Steel)
Gasket oil inlet 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (oil outlet) 210021 (148062, 311496)
Manufacturer Honeywell-Garrett
