| Part Number | 465209-5004S |
| Previous Version | 465209-0004, 465209-4 |
| OE number | 87801413 |
| Description | FORD Agricultural skid loaders LS865, LX885, L865, New Holland 3200 Agricultural, Industrial |
| CHRA | 443853-0036 (443853-5036S) |
| Turbo Model | T250-05 |
| Fitted To Model | Tractor series 30 |
| Fitted To Engine | FNH, 4630T CNH |
| Engine Manufacturer | New Holland |
| Displacement | 3.2L, 3200 ccm 3 Cylinders |
| S/N | J00395A |
| Angle α (compressor housing) | 0° |
| Angle β (turbine housing) | 341º |
| Bearing Housing | 435349-0022 (Oil Cooled) |
| Turbine Wheel | 435406-0003 (Ind. 53. mm, Exd. 41.7 mm, Trm 62, 10 Blades) |
| Comp. Wheel | 446335-0015 (Ind. 34.41 mm, Exd. 52. mm, 6+6 Blades, Superback) |
| Back plate | 430735-000 (430612-0003) (1100025300) |
| Heat shield Number | 443594-0001 (1100025341) |
| Repair Kit | 709143-0001 (1100025761) |
| Turbine Housing | 434259-0001(87800061) |
| Compressor Cover | 434288-0019 |
| Turbine Housing AR | 0.51 |
| Gasket (turbine inlet) | 409039-0001 (210190, 210190-0000, 312617, 132044)(Stainless Steel, Single Port) |
| Gasket (turbine outlet) | 210225 (Stainless Steel) |
| Gasket (oil outlet) | 413709-0001 (Paper) |
| Manufacturer | Honeywell-Garrett |
Ford

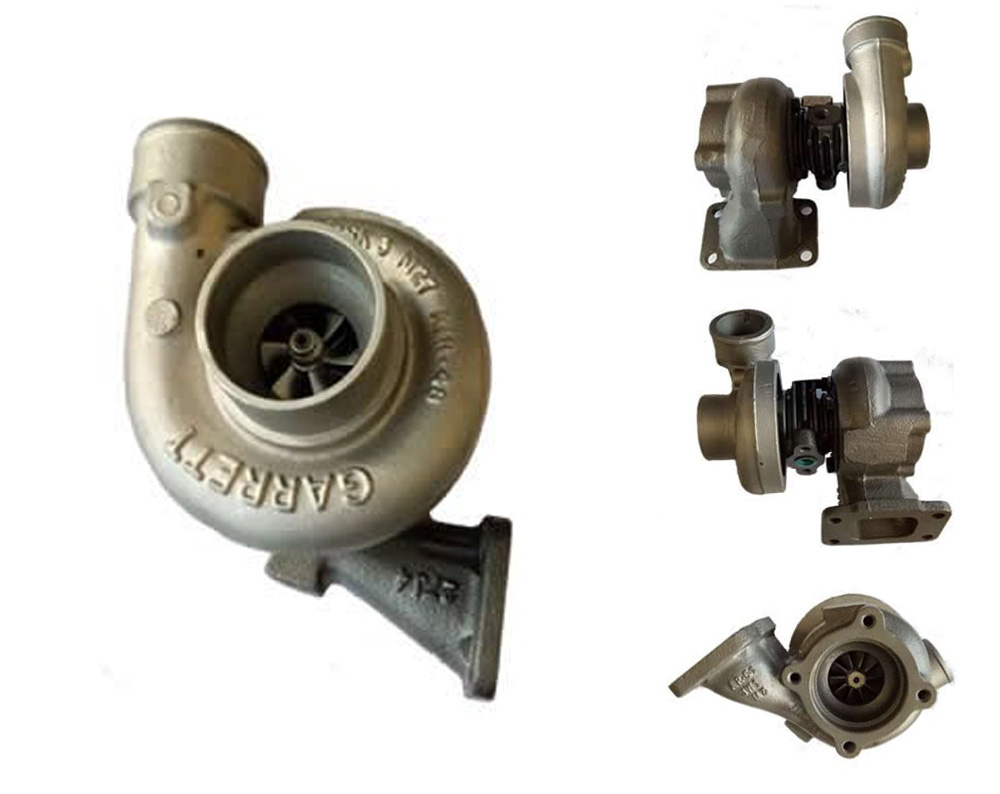

SUPART Ford New Holland Agricultural Turbo T250-05 465209-0004
Applications
2005- Ford New Holland Agricultural Tractor series 30, 3.2L ,Engine FNH
