| Part Number | 466746-5007S |
| Previous Version | 466746-0007, 466746-7 |
| OE number | 87840382 |
| Description | Agricultural AG Tractor B1 , Tractor Various, New.Holland Tractor 276V, 276VII, 9030E, 9030V, Versatile Bi-directional Tractor |
| CHRA | 409172-0017 (81875715, 409172-5017S, 409172-0062, 409172-0034, 409172-0061, E0NN6N684AA, E0NN6N684AAR) |
| Turbo Model | TA3119 |
| Engine | N/A |
| Engine Manufacturer | FORD |
| Displacement | 4.4L, 4400 ccm |
| RPM Max | 2500 |
| Fuel | Diesel |
| KW | 120 HP |
| Angle α (compressor housing) | 8° |
| Angle β (turbine housing) | 0° |
| Bearing Housing | 430027-0035 (186880, 186882, 407285-0018, 430027-0031, 430027-0035, 430027-0051)(Oil Cooled) |
| Turbine Wheel | 451310-0003 (451310-0004, 451310-0005, 451310-0006)(Ind. 65. mm, Exd. 48.5 mm, Trm 56, 5+5 Blades)(1100030436, 1100030438) |
| Comp. Wheel | 409096-0008 (409096-0014 , 197611, 103016-0000)(Ind. 40.5 mm, Exd. 60.1 mm, Trm 45, Superback, 6+6 Blades)(1100030401, 1200030071) |
| Back plate | 409629-0003 (409629-0001, 409629-0004, 409629-0006)(197340)(1100030300, 1300016007) |
| Heat shield Number | 409627-0000 (103121-0000, 409627-0001)(1100030340) |
| Repair Kit | 468139-0000/707897-0001 (1100030750)(Dynamic) |
| Turbine Housing | 441113-0005 (87840383) |
| Compressor Cover | 409115-0110 (87840384) |
| Turbine Housing AR | 1.06 |
| Gasket (turbine inlet) | 409039-0000 (312617, 2405022, 7C7431)(Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Gasket (oil outlet) | 210021 (148062, 311496) |
| Manufacturer | Honeywell-Garrett |
Ford

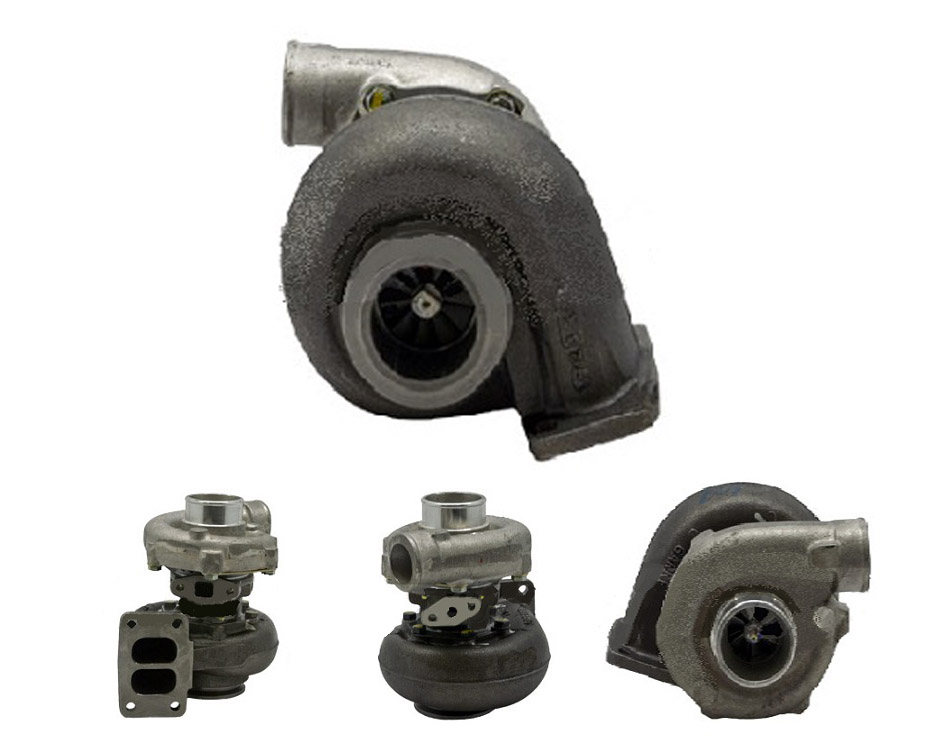

SUPART Ford New Holland Agricultural TA3119 Turbo 466746-0007
Applications
1985- Ford New Holland Agricultural AG Tractor B1
