| Part Number | 466586-5002S |
| Previous Version | 466586-0002, 466586-0003, 466586-2, 466586-3, 466586-0002, 466586-0003, 466586-0005, 466586-0006, 466586-2 |
| OE number | E5ZE9G438AB, E5ZE9G438BB, E5ZZ9G438C, E5ZZ9G438A, E5ZE9G438BB, E5ZZ9G438B, E5ZZ9G438D, E5ZE9G438AB, E5ZE9G438BB |
| Description | Ford, Mercury, Merkur |
| CHRA | 409174-0054 (409174-0060, 409174-5054S) |
| Turbo Model | TB0344 |
| Engine | 2.3L, 2300 ccm, 4 Cylinders |
| Displacement | 2.3L, 2300 ccm, 4/V6 Cylinders |
| KW | 145/175/200 |
| Fuel | Gas |
| Bearing Housing | 430027-0047 (430027-0050)(Water Cooled) |
| Turbine Wheel | 451311-0014 (451311-0003, 451311-0004, 451311-0013)(Ind. 59.0 mm, Exd. 48.35 mm, Trm 67, 11 Blades)(1100030435) |
| Comp. Wheel | 409096-0013 (103015-0000, 409096-0006)(Ind. 60. mm, Exd. 46.5 mm, Trm 60, 6+6 Blades)(1100030400, 1200020108) |
| Back plate | 430108-0003 (430082-0003) |
| Heat shield Number | 409639-0000 (103121-0000) |
| Repair Kit | 707897-0001 (200115-0000, 3545830)(Dynamic)(1100030750, 5000010031) |
| Turbine Housing | 431262-0012 |
| Compressor Cover | 409589-0089 (430704-0001) |
| Actuator | 430778-0006 $111.27 |
| Turbine Housing AR | 0.48 |
| Settings Waste gate (lift shaft) | 0.65-0.72/0.81-0.92 Bar |
| Settings Waste gate (pressure) | 0.38/5.00 mm |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Honeywell-Garrett |
Ford

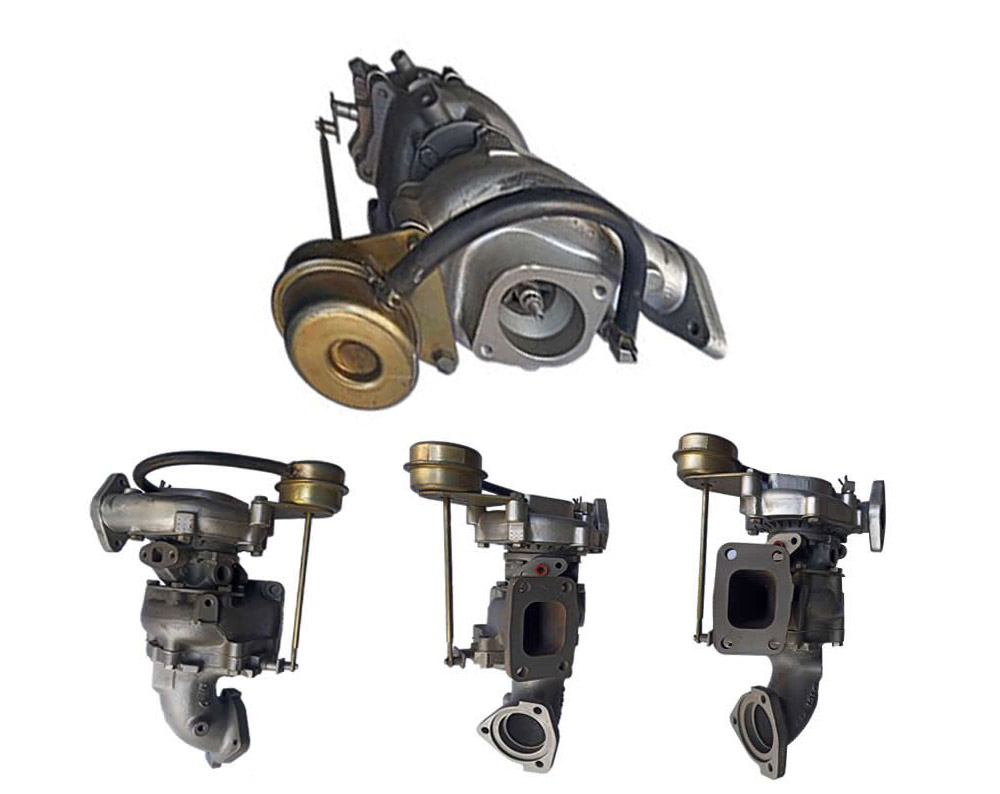

SUPART Ford, Mercury, Merkur TB0344 Turbo 466586-0002
Applications
1985- Merkur XR4Ti 2.3L/4 G Cylinders
1983- Mercury Cougar 2.3L/V6 G Cylinders
1985- Ford Thunderbird 2.3L/4 Cylinders
1985- Ford Mustang SVO 2.3L/4 Cylinders
