| Part Number | 4039319 |
| Previous Version | 2834181, 4033274, 4033274H, 4037176, 4039319 |
| OE number | 65.09100-7098, 65.09100-7146, 65091007098, 65091007146 |
| Year | 2004-01 |
| Description | Various, Doosan |
| Manufacturer Part Number | 2834181, 4037176 |
| CHRA | 4027956 (4032120, 4027956H) |
| Turbo Model | HX40W-B85J66GM/A76L84FH14JA-W, HX40W |
| Engine | DL08 Euro-4 , DL08TI EURO 3- 4, DH300 |
| Displacement | 6 Cylinders |
| KW | 300 |
| Engine Manufacturer | Daewoo |
| Fuel | Diesel |
| Angle α (compressor housing) | 286/296° |
| Angle β (turbine housing) | 122° |
| Bearing Housing | 4027869 (3532632, 4036830, 3599943)(Oil Cooled) |
| Turbine Wheel | 3535359 (3522879, 3519892)(Ind. 75.92 mm, Exd. 64. mm, 12 Blades) |
| Comp. Wheel | 3599018 (Ind. 55.97 mm, Exd. 85.7 mm, Trm 4.96, 7+7 Blades, Superback) |
| Back plate | 3530923 |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 3575169 (1153035750) |
| Turbine Housing | 4035160 |
| Compressor Cover | 4036829 |
| Actuator | 3598484 |
| Gasket Kit | 3545575 (215258) |
| Replaces | 4033274 |
| Manufacturer | HOLSET |
Daewoo

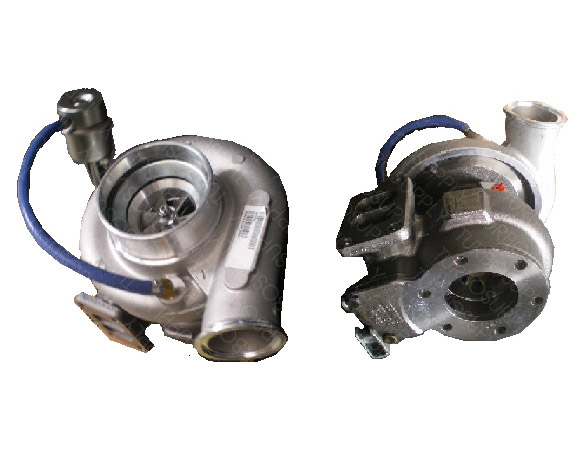

SUPART Daewoo, Doosan Various HX40W Turbo 4039319
Applications
2004-01 Daewoo Various with DL08TI EURO 3 Engine
2004-01 Doosan Various with DL08TI EURO 4 Engine
