| Part Number | 3523591 |
| Previous Part Number | 3523590 |
| OE number | 3801590, 3801590NX, 3801590RX, 4033537, 4033537H, 503801590 |
| Description | Industrial, Cummins 855NT-FFC |
| CHRA | 4027930 (4027930H) |
| Turbo Model | HT4B-2765J/K1.05 C1, HT4B |
| Engine | VTA28, VTA 28 (1710) |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Bearing Housing | 3523620 (Oil Cooled) |
| Turbine Wheel | 3522788 (Ind. 88.8 mm, Exd. 118.08 mm, Trm 6.45, 13 Blades) |
| Comp. Wheel | 3523592 (Ind. 82.1 mm, Exd. 128.8 mm, Trm 3.73, 9+9 Blades, Superback) |
| Back plate | 3524437 |
| Heat shield Number | 3527755 |
| Repair Kit | 3545679 (3545649)(1152104750) |
| Turbine Housing | 3522159 |
| Compressor Cover | 3523592 |
| Gasket (turbine inlet) | 210085 (210085-0000, 190849)(1900000001)(Steel, 4 bolt holes) $13.005 |
| Gasket (oil inlet) | 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) |
| Gasket (oil outlet) | 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) |
| Gasket Kit | 318418 (3755843)(R89879, R105346) |
| Manufacturer | HOLSET |
Cummins

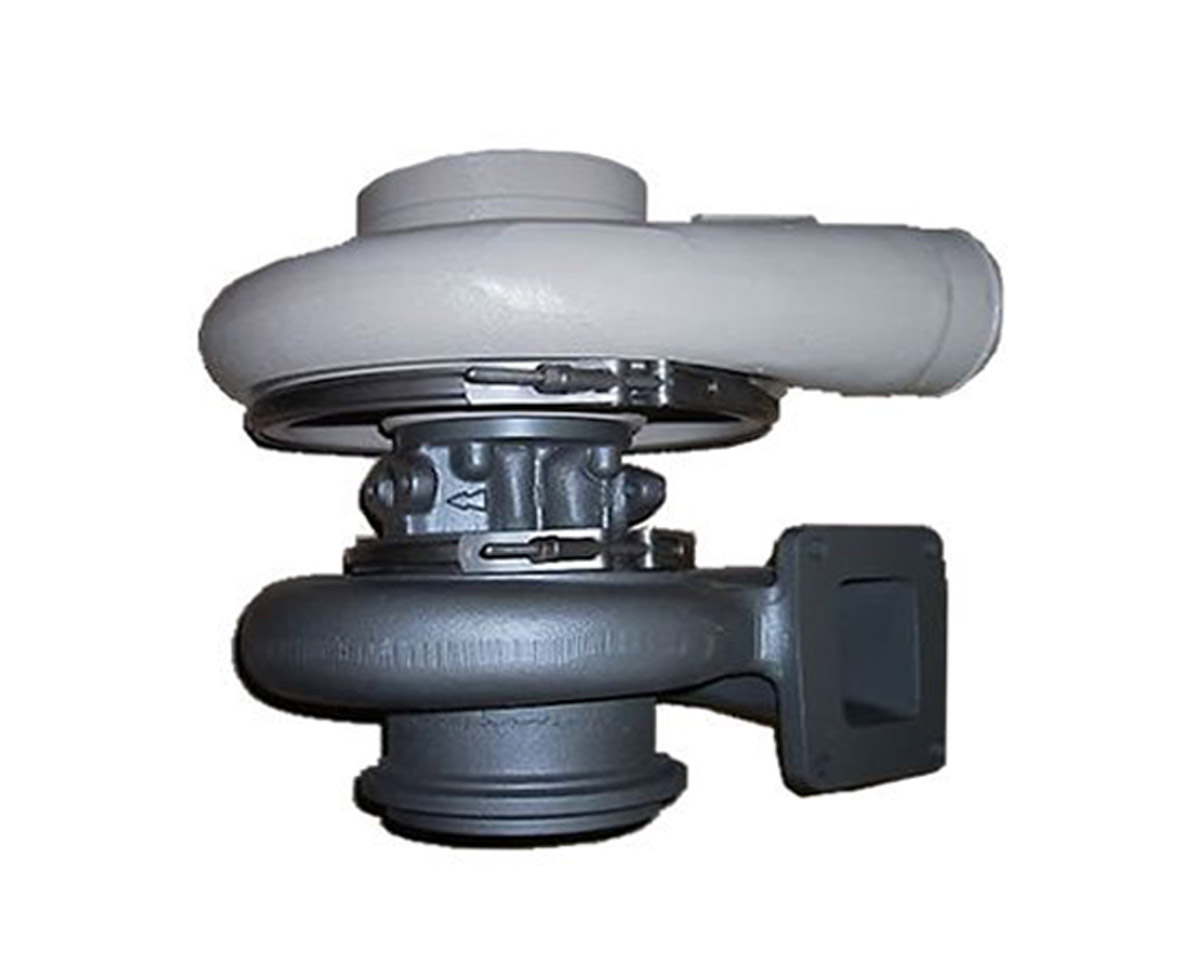

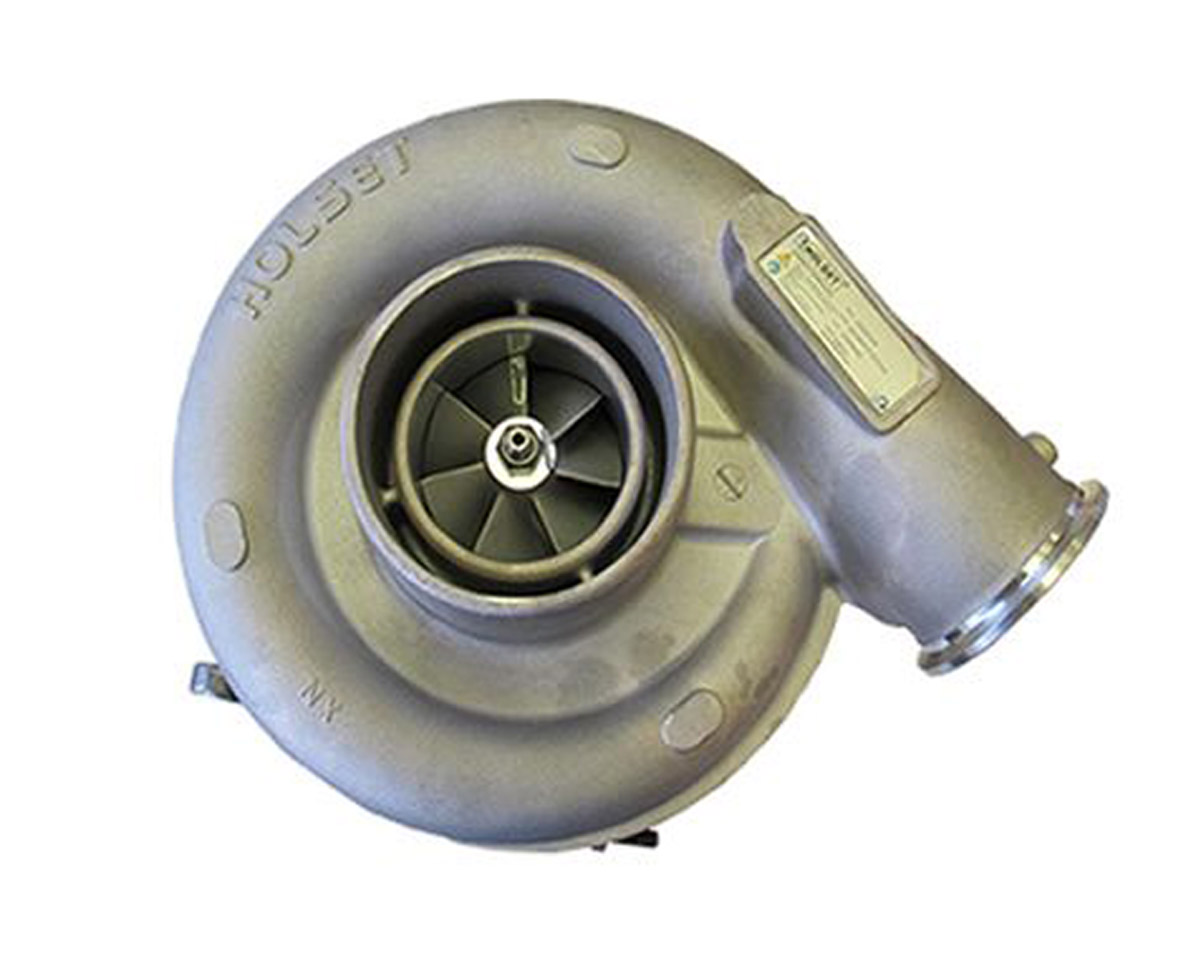

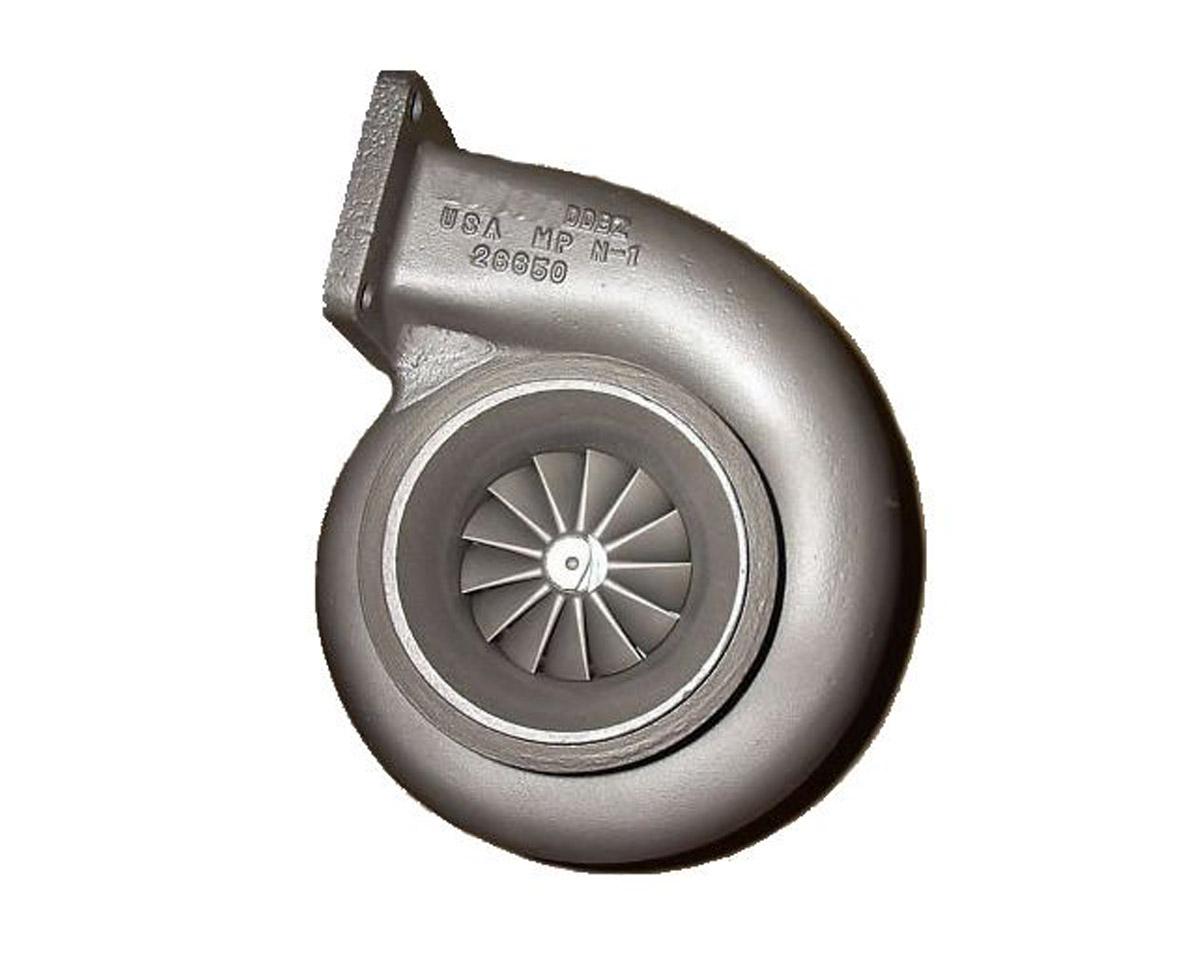

SUPART Cummins Industrial HT4B Turbo 3523591
Applications
1988-07 Cummins Industrial Locomotive, Power Gen with VTA28 Engine
