| Part Number | 167166 |
| Previous Version | 178008 |
| OE number | OR6830, 110-6980, 1106980, 1106982 |
| Description | Earth Moving |
| CHRA | 167165 (0R6740, 178152, 1107692) |
| Turbo Model | S3BGL114 |
| Prefix | 3KS, 9TL |
| Engine Truck | 3306C, 3306 |
| KW | 300 HP |
| Fuel | Diesel |
| Bearing Housing | 199732 |
| Turbine Wheel | 166493 (1139329)(Ind. 76.2 mm, Exd. 68.8 mm, 10 Blades) |
| Comp. Wheel | 199097 (4P9803)(Ind. 60.6 mm, Exd. 86.4 mm, 7+7 Blades, Superback) |
| Back plate | 199646 (30-05718) |
| Heat shield Number | 197394 (7C9531) |
| Repair Kit | 318389 (Replace 318386/7/9)(1252203750) |
| Gasket Kit | 318417 |
| Turbine Housing | 1107869 |
| Compressor Cover | 198985 (4P9586) |
| Gasket Kit | 318417 |
| Gasket (turbine inlet) | 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) |
| Gasket oil inlet | 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) |
| Gasket (oil outlet) | 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(417381 Replaced by 1543360)(1900000025) |
| Replaces By | 178008 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Condition | Rebuilt |
Caterpillar

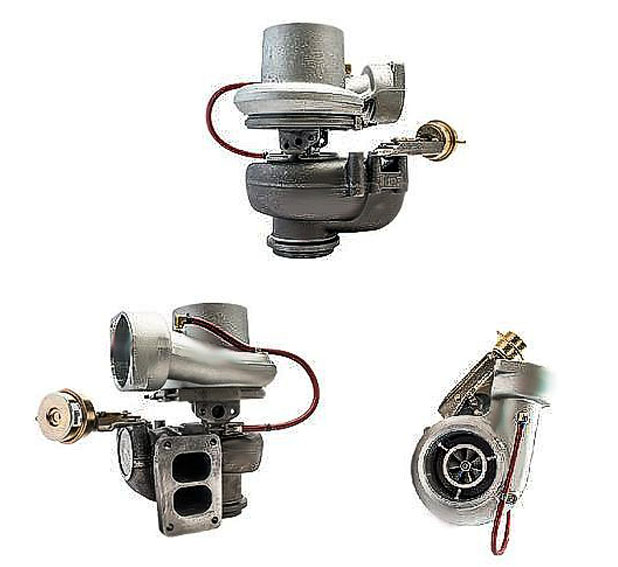

SUPART Caterpillar Truck, Earth Moving S3BGL114 Turbo 167166
Applications
1993-07 Caterpillar Truck with 3306C Engine
