| Part Number | 167167 |
| OE number | 110-6979, 1106979, 1106981, 0R6829 |
| Description | Machine, Industrial, Truck |
| CHRA | 167165 (0R6740, 178152, 1107692) |
| Turbo Model | S3BGL114 |
| Prefix | 3KS, 9TL, 64Z |
| Fuel | Diesel |
| Machine Engine | 3306 |
| Industrial | 3306 |
| Truck | 3306C |
| KW | 221/224/301 |
| Displacement | 10.3L, 10300 ccm |
| RPM | 2000 |
| S/N | 64Z20292-UP |
| Bearing Housing | 199732 (Oil Cooled) |
| Turbine Wheel | 166493 (1139329)(Ind. 76.2 mm, Exd. 68.8 mm, 10 Blades) |
| Comp. Wheel | 199097 (4P9803)(Ind. 60.6 mm, Exd. 86.4 mm, 7+7 Blades, Superback) |
| Back plate | 199646 (30-05718) |
| Heat shield Number | 197394 (7C9531) |
| Repair Kit | 318389 (Replace 318386/7/9)(1252203750) |
| Turbine Housing | 167169 |
| Compressor Cover | 198985 (4P9586) $474.63 |
| Actuator | 166513 $200.51 |
| Gasket (turbine inlet) | 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) |
| Gasket oil inlet | 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) |
| Gasket (oil outlet) | 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(417381 Replaced by 1543360)(1900000025) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Condition | Rebuilt |
Caterpillar

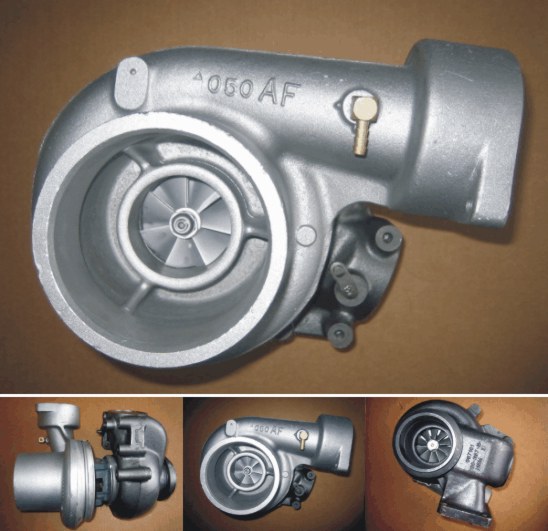

SUPART Caterpillar Machine, Industrial, Truck S3BGL114 Turbo 167167
Applications
1993- Caterpillar Earth Moving with 3306 Engine
