| Part Number | 167199 |
| Previous Part Number | 167197, 167197R, 167199, 167199R, 178011, 178011R, 467197, 467199, 478011 |
| OE number | 0R6890, 114-4658, 114-4660, 1144658, 1144660 |
| Description | Earth Moving |
| CHRA | 166144 (0R6575, 6I-2290, 6I2290, 166144R, 178142, 178142R, 466144, 478142)(1000070031B) |
| Turbo Model | S2EGL100 |
| Engine | 3116 |
| KW | 184/250 |
| Fuel | Diesel |
| Bearing Housing | 168652 (199759)(Oil Cooled)(1900011197B) |
| Turbine Wheel | 167423 (4P2755)(Ind. 60.6 mm, Exd. 69.6 mm, Trm 11.2, 10 Blades)(1100016145B) |
| Comp. Wheel | 166891 (199782)(1047152)(Ind. 56.9 mm, Exd. 81.3 mm, Trm 15.28, 7+7 Blades, Superback)(1200016522) |
| Back plate | 166537 (1169548)(1252202300, 1800016020) |
| Heat shield Number | 194149 (7C5856)(2030016078) |
| Repair Kit | 318379 (5000030122) |
| Turbine Housing | 166502 |
| Compressor Cover | 168525 (1280622) |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Caterpillar

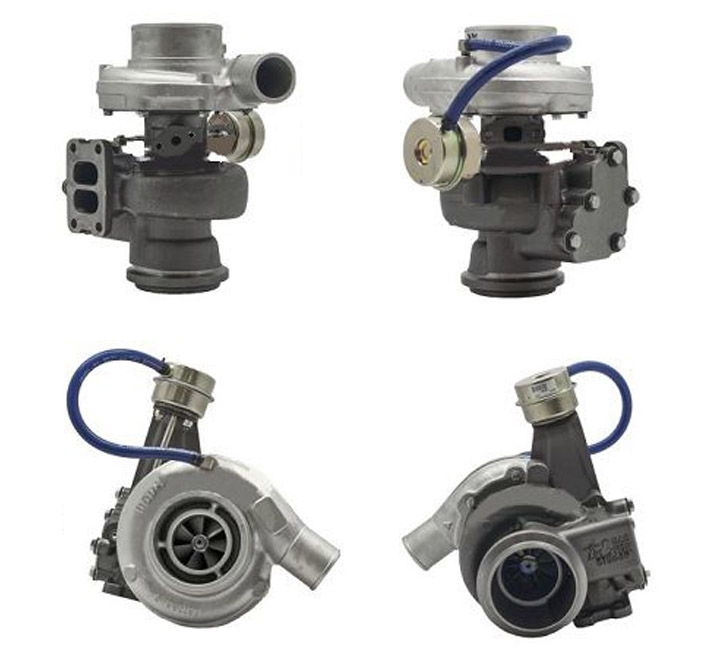

SUPART Caterpillar Earth Moving S2EGL100 Turbo 167199
Applications
1994-01 Caterpillar Earth Moving with 3116 Engine
