| Part Number | 176865 |
| Previous Version | 176865R, 178663, 178663R, 15109700009, 1500-970-0017, 1500-988-0017, 15009700017, 15009880017 |
| OE number | 3014203, 3371983, 3766453, 2521603, 301-4203, 337-1983, 376-6453, 252-1603, 0R6143, 10R9057, 20R1112 20R-1112, 20R-7915, 20R1112, 20R7915, 301-4203, 3014203, 337-1983, 3371983, 376-6453, 3766453, 396-6006, 3966006, 476865, 478663, 301-4204 |
| Year | 2004-10 |
| Description | Off-Highway Truck 793D, Machine Engine, Earth Moving |
| Manufacturer Part Number | 174858 |
| CHRA | 178400 (10R-9493, 10R9493, 178844, 178844R, 20R-7920, 20R7920, 252-1786, 2521786, 337-1986, 3371986, 396-6007, 3966007, 478844, 174859) |
| Turbo Model | S510C012 |
| Engine | C9, 3516 HD |
| Displacement | 70.0L, 7000 ccm |
| KW | 1776/2415 |
| RPM Max | 1750 |
| Prefix | 7DS, CPW, DSR, KNS, MSK, MSW, MSX, MWJ, SPW, 4AR, 4GZ, ATY, FDB |
| Fuel | Diesel |
| Machine Engine | 3516, 3516B |
| Off-Highway Truck | 793C, 793D |
| S/N | 8WM979-1888, 8WM979-2378, 8WM2379-2920, FDB00001-UP, KNS00001-UP, 8WM2921-UP |
| Angle a (compressor housing) | 310º |
| Angle ß (turbine housing) | 68º |
| Repair Kit | 173611 (318423) |
| Turbine Housing | 2521799 (252-1799) |
| Compressor Cover | 3014201 (301-4201) |
| Gasket oil inlet | 1215736 |
| Listed | |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
Caterpillar

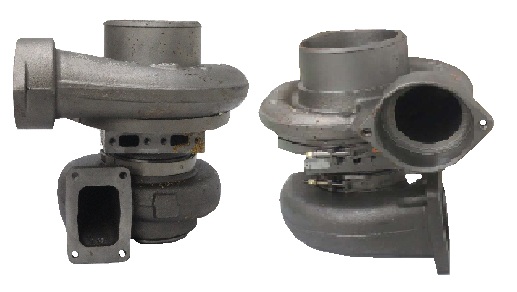

SUPART Caterpillar 793 HD Truck, Earth Moving S510C012 Turbo 176865
Applications
2004-10 Caterpillar Off-Highway Truck 793D, Machine Engine with C9, 3516 HD Engine
