| Part Number | 52229883100 |
| Previous versions | 5222-988-3100, 5222 988 3100, 5222 980 3100 |
| OE Number | 93012301301, 930.123.003.AX, 930.123.013.01 |
| Year | 1978-01 |
| Description | Porsche 911, 911 Targa Turbo (930) |
| Manufacturer Part Number | 52229703100, 5222-970-3100, 5222 970 3100 |
| CHRA | 52227100010 (5222-710-0010) |
| Turbo Model | 3LDZ-319C11.1 |
| Engine | 930-60 , 930-06, 930.60, 930.66 |
| Displacement | 3.3L, 3300 ccm |
| KW | 221/300 |
| RPM Max | 5500 |
| Angle α (compressor housing) | 270° |
| Angle β (turbine housing) | 335° |
| Bearing Housing | 52221500006 (Oil Cooled) |
| Turbine Wheel | 52221202112 (185141, 52988, 143011-0000)(Ind. 61.13 mm, Exd. 75.48 mm, Trm 9.12, 12 Blades)(1150403435) |
| Comp. Wheel | 52231232005 (Ind. 53.45 mm, Exd. 79.95 mm, 6+6 Blades, Flatback) |
| Back plate | 52321523001 (51135, 5S4556, 142066, 49162-22500, 52321523000, 197651, 143044-0000)(1250403300) |
| Heat shield Number | 52221652000 |
| Repair Kit | 52227110002 |
| Turbine Housing | 52221016320 |
| Compressor Cover | 52231015016 |
| Turbine Housing AR | 11 |
| Gasket turbine inlet (single flow) | 52231083000 |
| Gasket (oil outlet) | 52231586501 |
| Gasket (oil inlet) | 52231586500 |
| NOTE | Inter cooler, also U.S. version with 195 kW; OE Reman. turbo |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Porsche

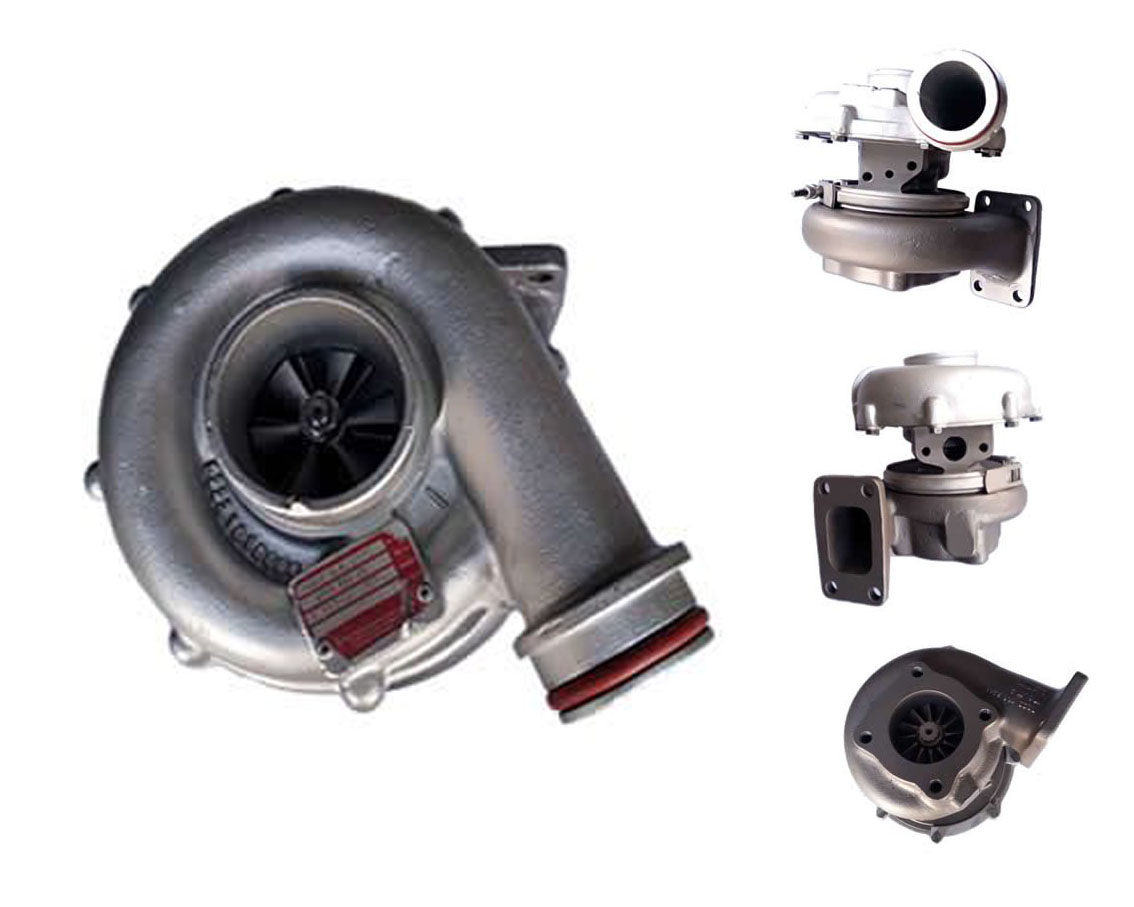

Porsche 911, 911 Targa (930) 3LDZ SUPART Turbo 52229883100
Applications
1978- Porsche 911, 911 Targa Turbo (930) Engine 930.60, 930.66
