| Part Number | 466543-5002S |
| Previous Version | 466543-0001, 466543-0002, 466543-2 |
| OE Number | 1441175F00, 14411-75F00 |
| Year | 1994-96 |
| Description | Nissan Silvia, 200SX |
| CHRA | 431876-0056 (431876-5056S) |
| Turbo Model | TB2809 |
| Engine | SR20DET |
| Engine Manufacturer | Nissan |
| Displacement | 2.0L, 1998 ccm, 4 Cylinders, 16V |
| KW | 89/200 HP |
| RPM Max | 4400 |
| Fuel | Gasoline |
| Angle α (compressor housing) | 193° |
| Angle β (turbine housing) | 195° |
| Bearing Housing | 446931-0001 |
| Turbine Wheel | 435257-0001/432620-0002/435257-0002/435737-0005/435922-0001 |
| Comp. Wheel | 445436-0001 |
| Back plate | 432280-0001 |
| Heat shield Number | 431055-0003 |
| Repair Kit | 709143-0001 |
| Turbine Housing | 430609-0368 |
| Compressor Cover | 467937-0001 |
| Turbine Housing AR | 0.64 |
| Actuator | 448734-0005 |
| settings Waste gate (pressure) | 0.290-0.330/0.400-0.440 bar |
| settings Waste gate (lift shaft) | 0.38/4.00 mm |
| Gasket (turbine inlet) | 210218 |
| Gasket (turbine outlet) | 210269 |
| Gasket (oil outlet) | 413709-0001 |
| Gasket (Air inlet compressor housing) | 709375-0001 |
| Gasket (Air outlet compressor housing) | 210343 |
| Manufacturer | Honeywell-Garrett |
Nissan

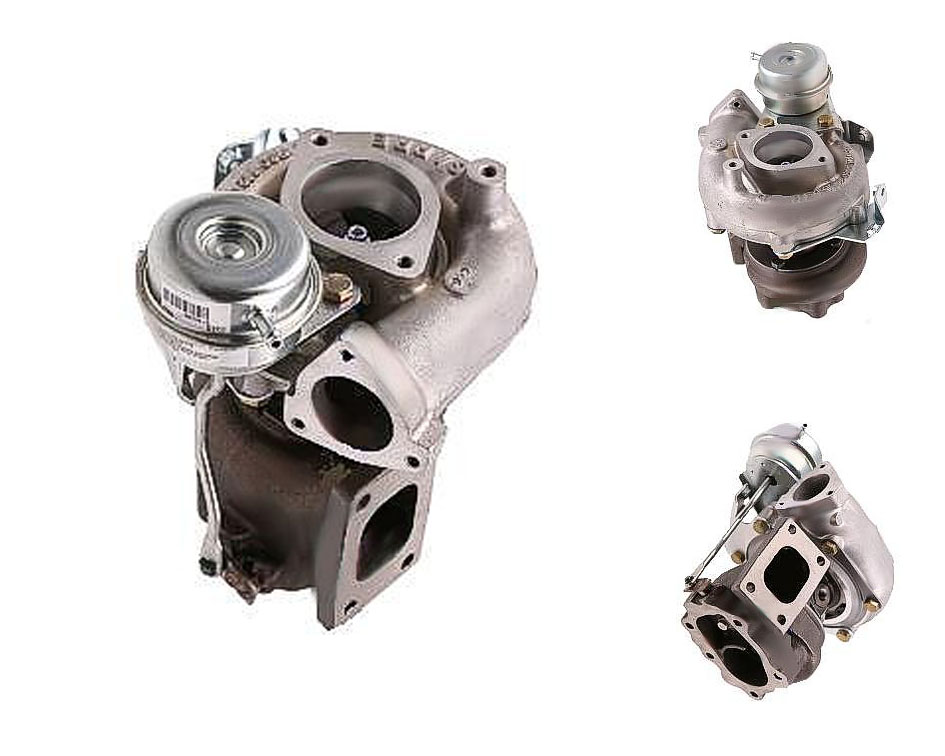

Nissan Silvia , 200SX TB2809 SUPART Turbo 466543-0002
Applications
1994-96 Nissan Silvia, 200SX Turbo 16V (S14) with SR20DET Engine
