| Part Number | 724249-5001S |
| Previous Version | 724249-0001 |
| OE Number | 90529201007402, 9.0529.20.1.007402, 905292010074-02 |
| Year | 2001- |
| Description | Nissan Frontier |
| CHRA | 451298-0020 (451298-5020S) |
| Turbo Model | GT2052S |
| Engine | 4.07TCA |
| Engine Manufacturer | Nissan |
| Displacement | 2.8L, 2800 ccm, 4 Cylinders |
| Fuel | Diesel |
| Angle α (compressor housing) | 44° |
| Angle β (turbine housing) | 353° |
| Bearing Housing | 433275-0002 (435793-0002, 713782-0002, 433275-0005) (1102015450)(Oil Cooled) |
| Turbine Wheel | 434715-0039/434715-0027 (1102020440) (Ind. 47.0 mm, Exd. 40. mm, Trm 72, 12 Blades) |
| Comp. Wheel | 451584-0015 |
| Back plate | 701335-0012 |
| Heat shield Number | 434302-0001/434684-0001 (1102015343) |
| Repair Kit | 732252-0001 (1102015756) |
| Turbine Housing | 430609-0385 |
| Compressor Cover | 723250-0002 |
| Actuator | 702559-0010/702558-0009 |
| Settings Waste gate (pressure) | 1.559-1.599/1.736-1.814 bar |
| Settings Waste gate (lift shaft) | 1.00/4.00 mm |
| Gasket (turbine inlet) | 210360 |
| Gasket (turbine outlet) | 210647 (Inox Steel) |
| Gasket (oil outlet) | 210243 (2455001, Non Metallic) (Paper) |
| Manufacturer | Honeywell-Garrett |
Nissan

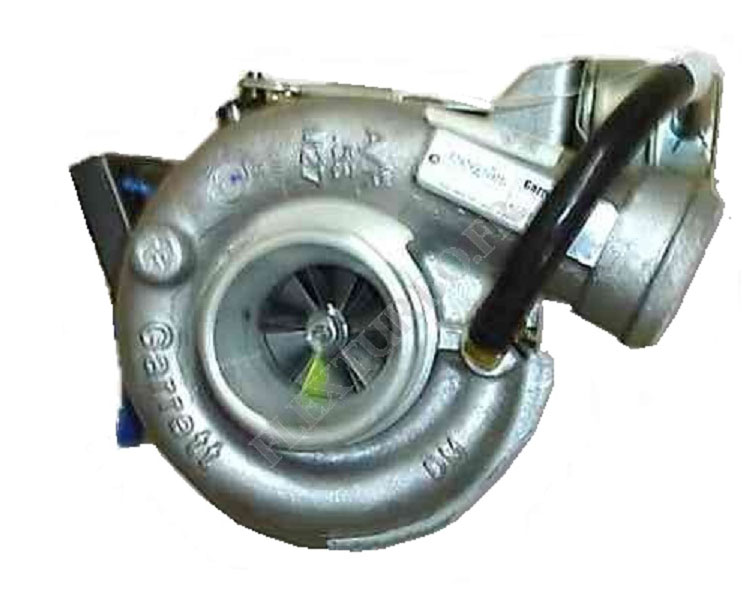

Nissan Frontier GT2052S SUPART Turbo 724249-0001
Applications
2001- Nissan Frontier with 4.07TCA Engine
2001 Nissan Navara with 4.07TCA Engine
