| Part Number | 466842-5002S |
| Previous Version | 466842-5001S, 466842-0001, 466842-0002, 466842-1, 466842-2 |
| OE number | ETC6878 |
| Year | 1986-88 |
| Description | Land rover Gemini, FALCON |
| CHRA | 430425-0029 (430425-5029S) |
| Turbo Model | TB0226 |
| Engine | Gemini |
| Displacement | 2.5L, 2500 ccm, 4 Cylinders |
| KW | 90/110 |
| Model | Gemini, Falcon |
| Fuel | Diesel |
| Angle α (compressor housing) | 270° |
| Angle β (turbine housing) | 355º |
| Bearing Housing | 430936-0008 (432257-0009) |
| Turbine Wheel | 435258-0005 (435243-0001, 435243-0004, 435243-0002, 435259-0001, 435737-0001, 435737-0006)(Ind. 35.25 mm, Exd. 47. mm, Trm 56, 11 Blades)(1100020435) |
| Comp. Wheel | 410450-0011 (Ind. 33.95 mm, Exd. 48. mm, Trm 50, 6+6 Blades, Superback) |
| Back plate | 430612-0003 (432280-0001) |
| Heat shield Number | 430871-0002 (445118-0001, 723421-0001) |
| Repair Kit | 709143-0001 (200423-0000, 707903-0002)(1100025761) |
| Turbine Housing | 430609-0155 |
| Compressor Cover | 409589-0102 (431039-0022) |
| Turbine Housing AR | 0.47 |
| Actuator | 430819-0055 |
| Settings Waste gate (pressure) | 0.76-0.83 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 210218 (2445051, 2445334)(Stainless Steel) |
| Gasket (turbine outlet) | 210217 (Stainless Steel) |
| Manufacturer | Honeywell-Garrett |
Land Rover

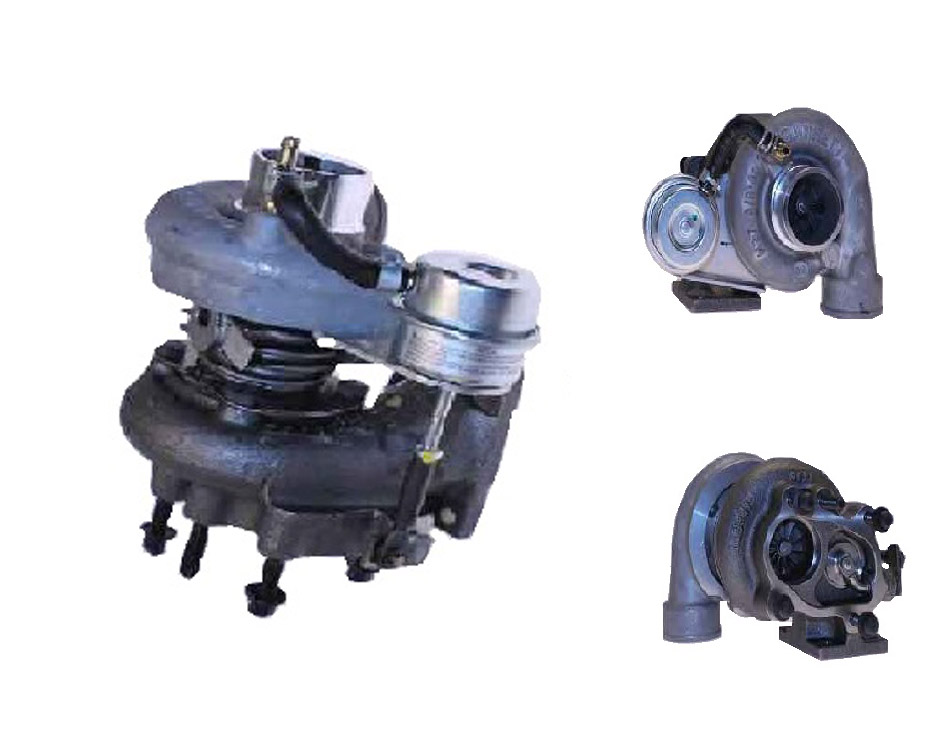

Land Rover Falcon, 90, 110 SUPART TB0226 Turbo 466842-0002
Applications
1986-88 Land-rover Model Gemini 2.5 IDI D (2.5)
1986-88 Rover Model FALCON 2.5L 14 D (2.5)
