| Part Number | 3534829 |
| Previous Version | 3537189, 3534830 |
| OE number | 3802766, 6735-81-8100, 6735818100 |
| Year | 1993-12- |
| Description | Various |
| Manufacturer Part Number | 3537190, 3802766, 3802766NX, 3802766RX |
| CHRA | 3523317 (3545713) |
| Turbo Model | H1C, H1C-8243BZ/E12DA11 |
| Engine | S6D102, 6BT-110 |
| Engine Manufacturer | Cummins, Komatsu |
| KW | 110 HP |
| Bearing Housing | 3530591 (3530592)(1152301450) |
| Turbine Wheel | 3519336 (3595832)(Ind. 70.0 mm, Exd. 59.9 mm, 12 Blades) (1152301435) |
| Comp. Wheel | 3521711 (3599639)(Ind. 50. mm, Exd. 83. mm, 8+8 Blades) (1152301400) |
| Back plate | 3522801 |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 3545652 (4027309)(3802148)(1152301750) |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Manufacturer | HOLSET |
Komatsu

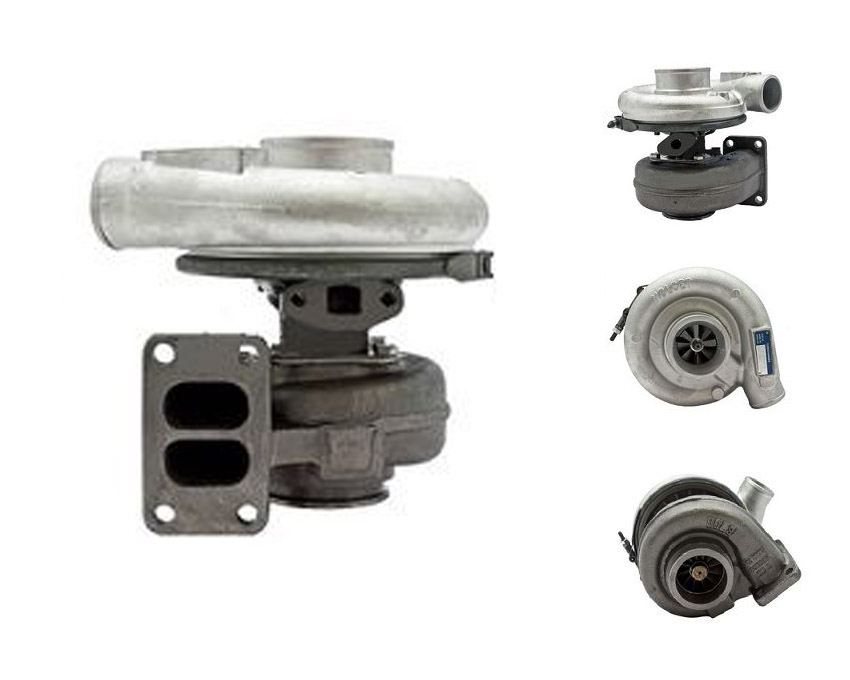

Komatsu Various SUPART H1C Turbo 3534829
Applications
1993-12 Komatsu D41, P-6 with S6D102 Engine
1993-12 Cummins Komatsu with 6BT-110 Engine
