| Part Number | 466152-5003S |
| Previous Version | 466152-0001, 466152-0002, 466152-0003, 466152-0005, 466152-3 |
| OE number | 6152818400, 6152818300,6152-81-8400, 6152-81-8300 |
| Description | Komatsu D90/65-8, FD400 Forklift |
| CHRA | 410382-0007 (410382-5007S) |
| Turbo Model | TV7705 |
| Engine | P096, SA6D125 |
| Displacement | 11.00L, 11046 ccm, 6 Cylinders |
| Fuel | Diesel |
| Angle α (compressor housing | 134º |
| Angle β (turbine housing) | 342.5º |
| Bearing Housing | 408495-0027 (Oil cooled) |
| Turbine Wheel | 410383-0002 (33164103832)(Ind. 89. mm, Exd. 77.5 mm, 11 Blades) |
| Comp. Wheel | 441266-0003 (Ind. 63.5 mm, Exd. 97.8 mm, Trm 42-52, 6+6 Blades, Superback) |
| Back plate | 408487-0025 |
| Heat shield Number | 409368-0001 (407778-0001)(7N3760, 33164077781) |
| Repair Kit | 468103-0000 (468211-0000)(3545836, 188002-0000, 3545824, 2W0175)(3316468211)(1101678750/1) |
| Turbine Housing AR | 1.15 |
| Gasket (turbine inlet) | 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835) |
| Gasket oil inlet | 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)(Paper) |
| Gasket (oil outlet) | 210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) |
| Replaced By | 466152-0001 |
| Manufacturer | Honeywell-Garrett |
Komatsu

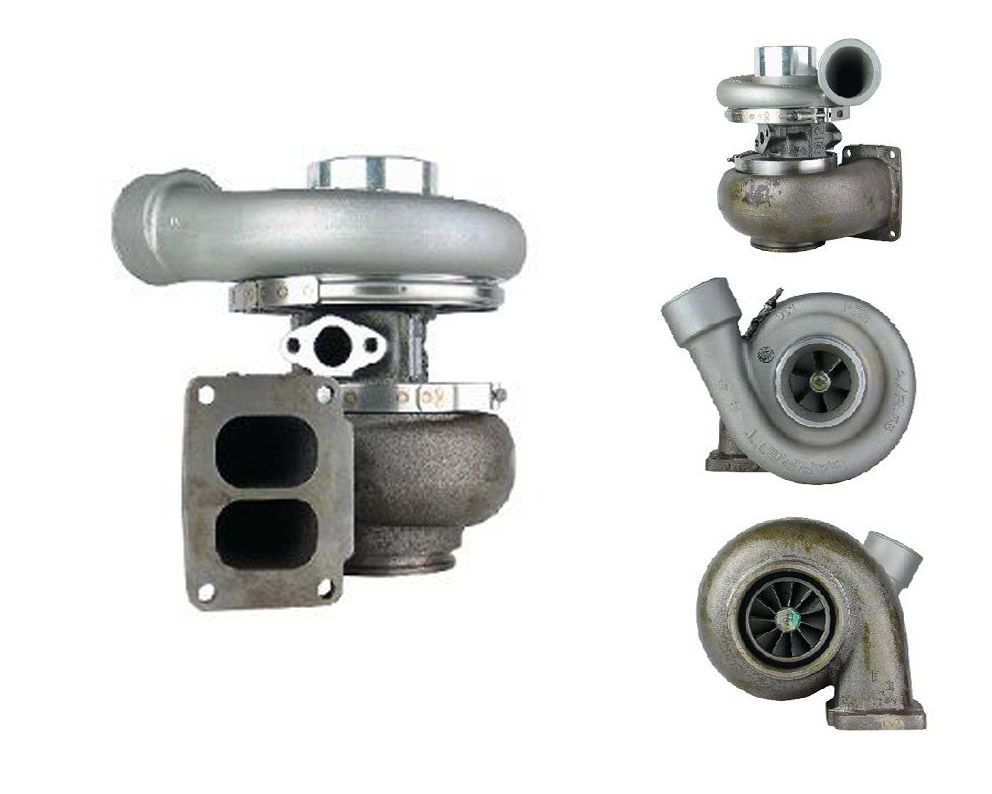

Komatsu FD400 Forklift, D90/65-8 Earth Moving SUPART TV7705 Turbo 466152-0003
Applications
Komatsu FD400 Forklift, Dozer with S6D125/SA6D125, P096 Engine
Komatsu D90/65-8 Dozer with S6D125 Engine
