| Part Number | 479008-5001S |
| Previous Version | 479008-0001, 479008-1, 479011-0001 |
| OE number | ME078069, ME78069, ME078070 |
| Description | Kobelco Excavator Trucks and Buses |
| CHRA | 447450-0111 (447450-5111S, ME078339) |
| Turbo Model | T04E58 |
| Engine | 6D16-T |
| Fuel | Diesel |
| Bearing Housing | 430027-0058 (430027-0038)(ME044066, 318137)(Oil cooled) |
| Turbine Wheel | 446905-0007 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0010, 451309-0003, 451309-0004)(Ind. 74. mm, Exd. 64.61 mm, 11 Blades) |
| Comp. Wheel | 442293-0015 (Ind. 50.80 mm, Exd. 75. mm, 6+6 Blades, Superback) |
| Back plate | 408045-0030 (408045-0031, 408045-0038, 408045-0039, 408045-0040) |
| Heat shield Number | 409299-0001 (409299-0000) |
| Repair Kit | 468265-0000 (3545831) |
| Turbine Housing AR | 1.32 |
| Gasket (turbine inlet) | 407294-0001 (310694, 407294-0001) |
| Gasket oil inlet | 210023 (409036-0000, 210023-0000, 55739, 147837) |
| Gasket (oil outlet) | 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807) |
| Manufacturer | Honeywell-Garrett |
Kobelco

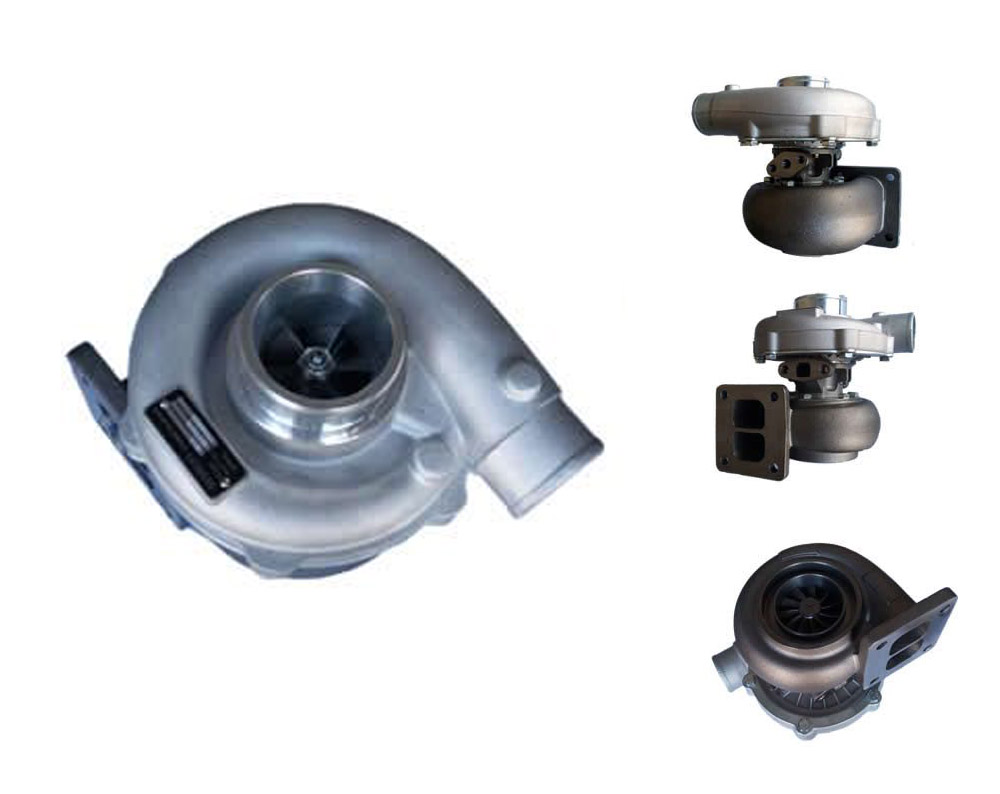

Kobelco Trucks and Buses SUPART T04E58 Turbo 479008-0001
Applications
Kobelco Trucks and Buses with 6D16-T Engine
