| Part Number | 466608-5005S |
| Previous Version | 466608-0005, 466608-9005, 466608-5, 465714-0002, 196066, 189199, 187546 |
| OE number | AR100241, AR101784, RE19781, RE16968, RE19782, RE12744, RE12743, RE19776, SE502201 |
| Description | Combine, Tractor 8450, 8650 |
| Turbo Model | TB4129, T04B87 |
| CHRA | 408105-0268 (408105-0242, 408105-0166, AR101788) |
| Engine | 6466, 6466A, 6466T |
| Displacement | 7.6L, 7600 ccm |
| Fuel | Diesel |
| Angle α (compressor housing) | 175.5º |
| Angle β (turbine housing) | 318.5º |
| Bearing Housing | 430027-0021 (407285-0019, 430027-0051, 430027-0029,430027-0032, 430027-0025)(186880, 186882)(AR63781)(1100030451)(Oil Cooled) |
| Turbine Wheel | 446905-0011 (410188-0017)(1810640C91)(Ind. 61.30 mm, Exd. 73. mm, Trm 71, 11 Blades) |
| Comp. Wheel | 409826-0009 (AR75496)(Ind. 50.8 mm, Exd. 70. mm, Trm Z, 6+6 Blades) |
| Back plate | 408045-0034 (408206-0002, 408045-0051, 408045-0006, 4N6863, 104244-0000, 311708, 310010, AR54934, AR101787, 311708C, 197340)(1100040360) |
| Heat shield Number | 409299-0000 (407565-0000, 409299-0001)(R43804, 3524773B) (311943)(7N0012) |
| Repair Kit | 468100-0000 (3524796, 2W0716, 6N7236, 310063) (1100040750) |
| Turbine Housing | 442523-0007 (R75495) |
| Compressor Cover | 408117-0034 (408117-0029)(R75494, R78250 ) |
| Turbine Housing AR | 1.15 |
| Gasket (turbine inlet) | 409039-0000 (210022, 210022-0000, 2405022, 7C7431)(Stainless Steel, Dual Port) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Honeywell-Garrett |
John Deere

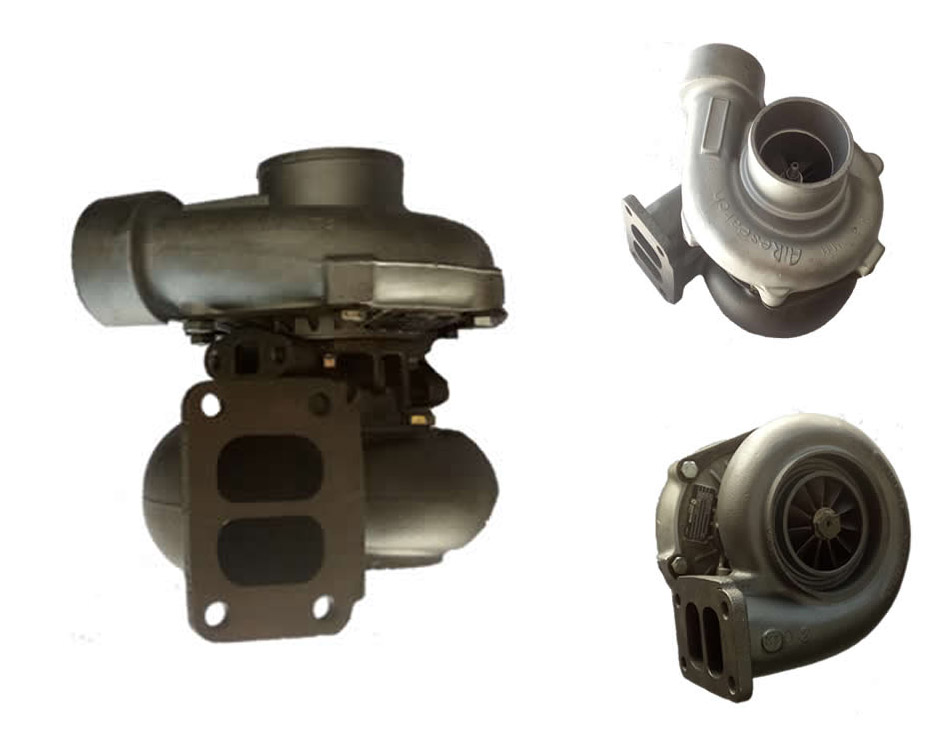

John Deere Agricultural Tractor SUPART TB4129 Turbo 466608-0005
Applications
John Deere Agricultural Combine, Tractor with 6466 Engine
