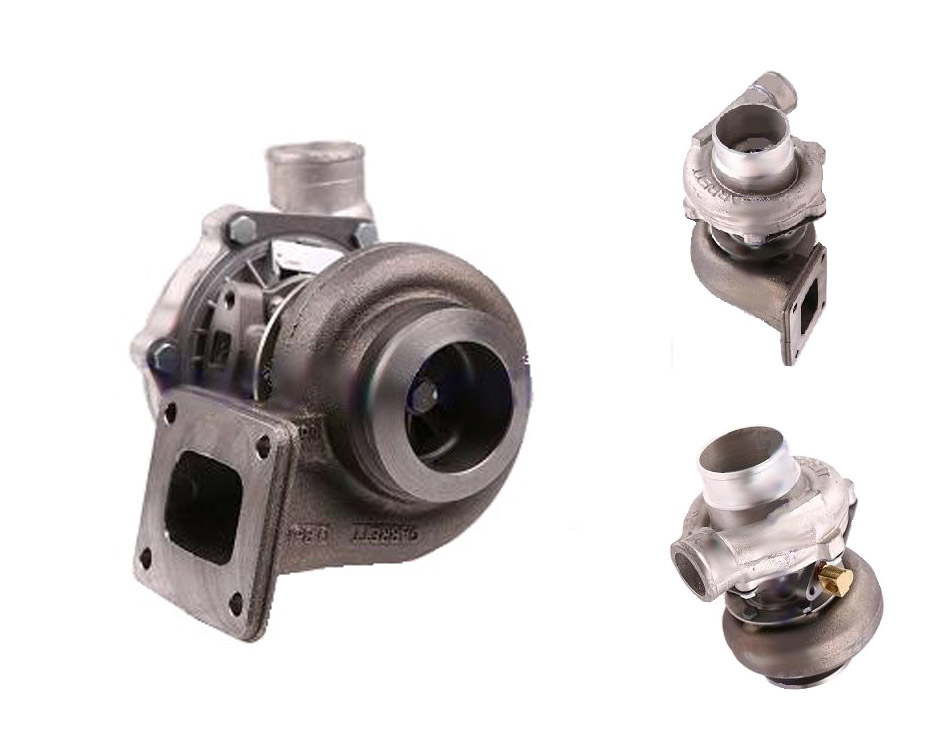

John Deere Agricultural SUPART T300-02 Turbo 454041-0001

Part Number	454041-5001S
Previous Version	452268-0001, 454041-0001, 454041-0002, 454041-1, 454041-0002, 452268-9001
OE number	RE47844, RE61594, RE61792, RE68896, SE500287
Description	M3/M4 Agricultural Tractor
CHRA	446311-0002 (446311-5002S)(RE46348)
Turbo Model	T300-02
Engine	4045T
Displacement	4.5L, 4500 ccm, 4 Cylinders
Fuel	Diesel
KW	91/101
Angle ¥á (compressor housing)	157°
Angle ¥â (turbine housing)	352°
Bearing Housing	430027-0021 (407285-0019, 430027-0051)(AR63781)(Oil Cooled)(1900011104)
Turbine Wheel	445812-0001 (E0NN6N678AA)(Ind. 54.5 mm, Exd. 61.5 mm, Trm 79, 10 Blades)
Comp. Wheel	446340-0003 (E0NN6N662AA)(Ind. 41.75 mm, Exd. 63. mm, Trm 44, 6+6 Blades)(1200016561)
Back plate	409629-0012
Heat shield Number	409627-0000 (409627-0001)(1100030340, 103121-0000)
Repair Kit	468139-0000 (EFPN6K682AA)(1100030750, 5000010041)(Dynamic)
Turbine Housing	447182-0022
Compressor Cover	446341-0003
Housing AR	0.86
Fitting oil inlet	400865-0011
Gasket (turbine inlet)	407294-0001 (310694, 303031063, 312617, 166618C, 8A0709, A58899, E5HN6N640AA, E7HZ6N640A, T30820)
Gasket (oil outlet)	210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket Kit	318418 (3534516, 3545576, 403240, 22505129)(2090505081)
Manufacturer	Borg Warner - 3K - Schwitzer
