| Part Number | 313097 |
| Previous Version | 466608-0003, 409710-0002 |
| OE number | AR74819, RE16790 |
| Description | Loader 644C, Skidder 740A, Harvester 743 |
| Turbo Model | T04B23 |
| CHRA | 408105-0144 (408105-5144S, 310283B) |
| Engine | 6466, 6466A |
| Engine Manufacturer | John Deere |
| Displacement | 7.6L, 7600 ccm |
| Fuel | Diesel |
| Angle α (compressor housing) | 224º |
| Angle β (turbine housing) | 318.5º |
| Bearing Housing | 311439 (311439A, 430027-0021/407285-0039) |
| Turbine Wheel | 310943 (310943D, 451309-0002) |
| Comp. Wheel | 310094 (310094A, 409179-0022) |
| Back plate | 312576 (408045-0051) |
| Heat shield Number | 311607 (407565-0000) |
| Repair Kit | 468100-0000 (310063, 3524796, 188006-0000) |
| Turbine Housing | 311733 (442523-0002) |
| Compressor Cover | 313104 (408117-0022) |
| Turbine Housing AR | 1,00 |
| NOTE | Complete turbo and core assembly replacements |
| NOTE | T04B core assembly and T/H kit also available - part no. 198367 |
| Gasket (turbine inlet) | 312617 |
| Gasket (oil outlet) | 311496 |
| Gasket (oil inlet) | 147837 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
John Deere

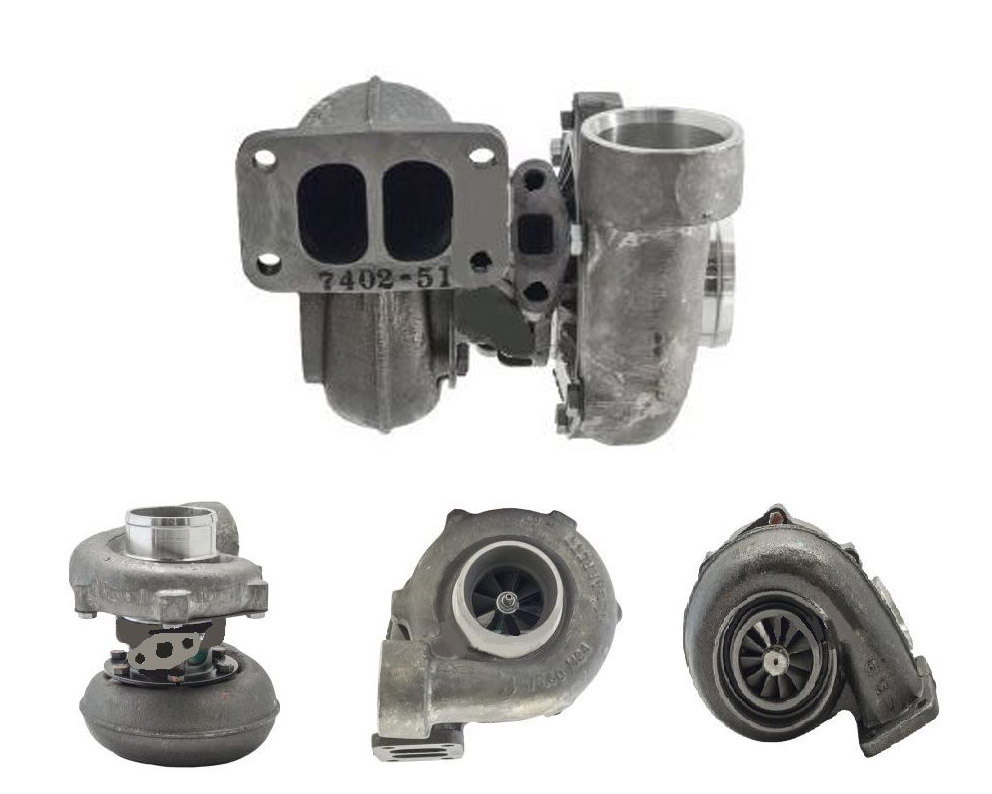

John Deere Agricultural SUPART T04B23 Turbo 313097
Applications
John Deere Agricultural Loader 644C, Skidder 740A, Harvester 743 with 6466/6466A Engine
