| Part Number | 3599317 |
| Previous versions | 2852375, 2852375R, 3599318, 4033312, 4033312H |
| OE number | 2852375, 504057402, 5452072, 5452072RX2 |
| Description | Iveco Wheeled Loader, CDC Dozer |
| CHRA | 4027864 (4027864H) |
| Turbo Model | HX35W-E7735AG/E16XB11, HX35W |
| Manufacturer Part Number | 4042198, 504057402, 5452072, 5452072RX |
| Engine Manufacturer | Iveco |
| KW | 110 |
| Fuel | Diesel |
| Trim | TAA, TC |
| Number of Cylinders | 4, 6 Cylinders |
| Angle α (compressor housing) | 305º |
| Angle β (turbine housing) | 360º |
| Bearing Housing | 4032032 (3599514, 4027443, 4032218)(84.50 mm)(Oil Cooled)(1900011016F) |
| Turbine Wheel | 3519336 (3595832)(351933600)(Ind. 70. mm, Exd. 60. mm, Trm 10.82, 12 Blades)(1152301435, 1100016442) |
| Comp. Wheel | 3599651 (3532312, 359965100)(Ind. 50. mm, Exd. 78. mm, Trm 9.77, 7+7 Blades, Superback)(1200016661) |
| Back plate | 3596448 (1800016009) |
| Heat shield Number | 3519302 (351930200)(1152301340) |
| Repair Kit | 4032129 (4027448)(1153035751, 2030016031) |
| Gasket Kit | 3545575 (1900100057, 5000020021) |
| Gasket cover Plate | 4044912 (5 Bolt Gasket) (Inox Steel) |
| Manufacturer | HOLSET |
Iveco

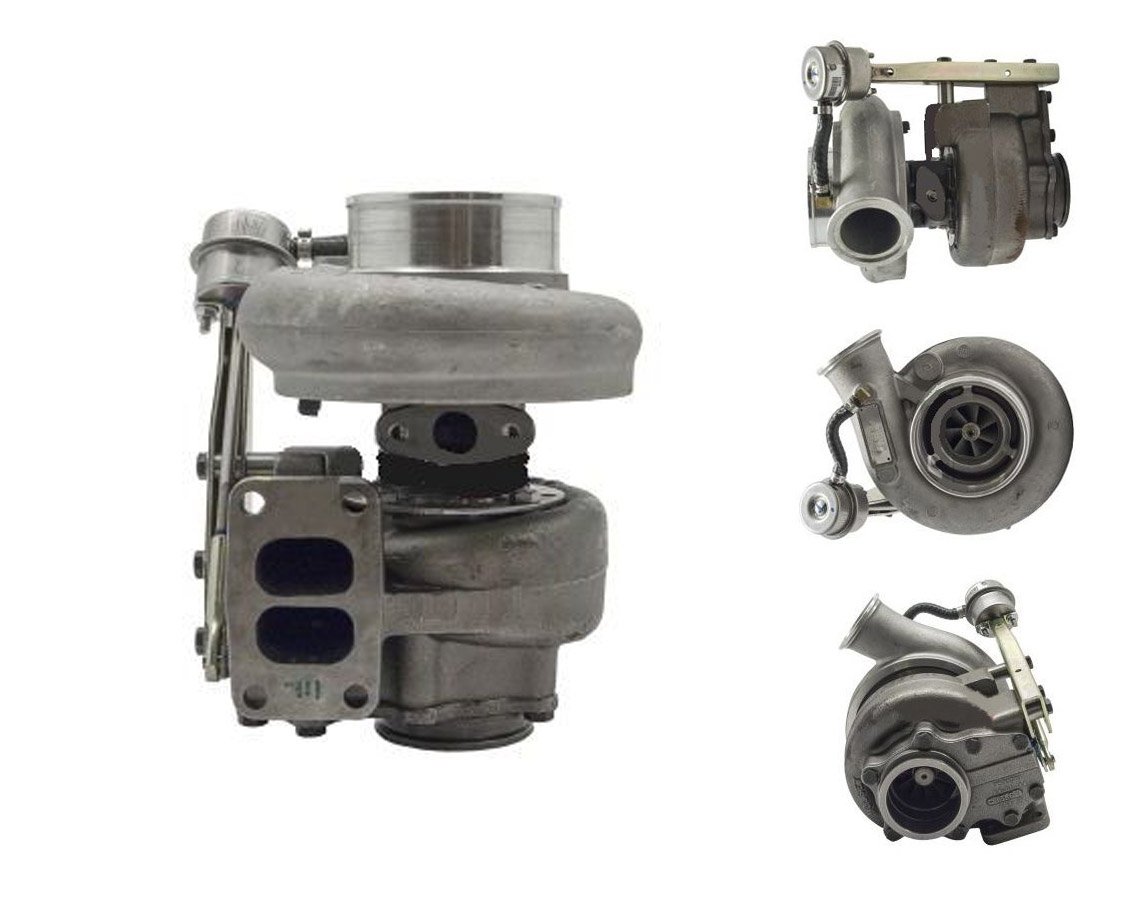

Iveco Wheeled Loader, CDC (CUMMINS) SUPART HX35W Turbo 3599317
Applications
2005-12 CDC (CUMMINS) Dozer 2 Valve TAA 6 Cylinders
2002-12 Iveco Wheeled Loader 2 Valve TC 4 Cylinders
