| Part Number | 3523649 |
| Previous Version | 3523648, 3591624, 3591625, 3591626, 4033070 |
| OE number | 8107135, 847860, 4835338, 8107560 |
| Description | Truck |
| CHRA | 3524047 (352404700) |
| Turbo Model | H2A, H2A, H2A-8253AB/H16JA8 |
| Engine | 8281SI.01, TD 71FG |
| Engine Manufacturer | Iveco, Volvo |
| Displacement | 17.2L, 1720 ccm |
| KW | 309 |
| Angle α (compressor housing) | 256.5/330/360º |
| Angle β (turbine housing) | 80/306.5/360º |
| Bearing Housing | 3502500 (3520574, 3530591, 3530592)(1152301450) |
| Turbine Wheel | 3519892 (351989200) (1152301436) |
| Comp. Wheel | 3521710 (Ind. 54. mm, Exd. 83. mm, Trm 42, 8+8 Blades) (1152301400) |
| Back plate | 3522801 |
| Repair Kit | 4027309/3545652 (1152301750) |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) |
| Gasket (turbine outlet) | 210226 (2405066) (Stainless Steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) |
| Gasket (turbine inlet) | 409039-0000 (210022, 210022-0000, 2405022, 7C7431)(Stainless Steel, Dual Port) |
| Manufacturer | HOLSET |
Iveco

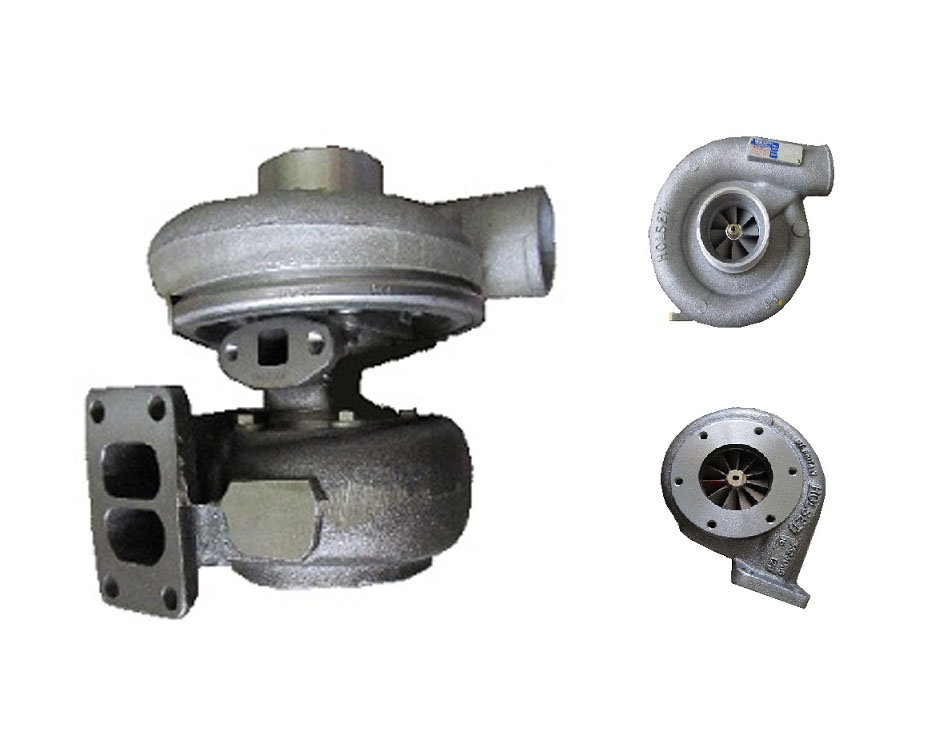

Iveco, Volvo Truck SUPART H2A Turbocharger 3523649
Applications
1985-04 Iveco Truck with 8281 SI.01, TD 71FG Engine
1985-04 Volvo Truck with 8281 SI.01, TD 71FG Engine
