| Part Number | 465427-0002 |
| Previous Version | 465427-0002, 465427-2 |
| OE number | 98441188 |
| Description | IVECO Truck E23/E24 Euro 1/2 Firefighting |
| CHRA | 447450-0037 (447450-5037S, 408105-0351) |
| Turbo Model | TBP409 |
| Engine | 8040.45.4, 8060.45.6000, 6090, 6200, 6280, 7200, 7280, 8060.45.6000/6090/6200/6280/7200/7280 Euro-1 & Euro-2 |
| Displacement | 5800 ccm, 5.8L, 6 Cylinders |
| KW | 201/204 |
| RPM Max | 2700 |
| Fuel | Diesel |
| Angle α (compressor housing) | 110º |
| Angle β (turbine housing) | 190º |
| Bearing housing | 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(Oil Cooled)(1100030450, 1900011104B, 103110005) |
| Turbine Wheel | 446905-0001 (407276-0005, 410188-0002, 410188-0005, 410188-0014, 446249-0004, 451309-0002)(20302)(Ind. 58.35 mm, Exd. 74.2 mm, Trm 9.36, 11 Blades)(20302, 1100040435, 1100030024, 101090023) |
| Comp. Wheel | 442293-0006 (1810440C1)(Ind. 47.5 mm, Exd. 75. mm, Trm 10.3, 6+6 Blades, Superback) |
| Back plate | 408045-0031 (408045-0030, 408045-0038, 408045-0039, 408045-0040)(1300016006, 104080001) |
| Heat Shield | 409299-0001 (409299-0000)(106040003) |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831)(5000010031, 109030030) |
| Turbine Housing | 435066-0013 |
| Compressor Cover | 409589-0186 (432747-0004) |
| Turbine Housing AR | 0.84 |
| Actuator | 432340-0015 |
| Turbine Housing | 435066-0013 |
| Compressor Cover | 409589-0186 |
| Turbine Housing AR | 0.84 |
| Actuator | 432613-0014 |
| Settings Waste gate adjustment (pressure) | 1.100 - 1.170 bar |
| Settings Waste gate (lift shaft) | 1.00 mm |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) |
| Gasket (turbine outlet) | 409196-0001 (210226) $17.71 |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037(Paper) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Manufacturer | Honeywell-Garrett |
Iveco

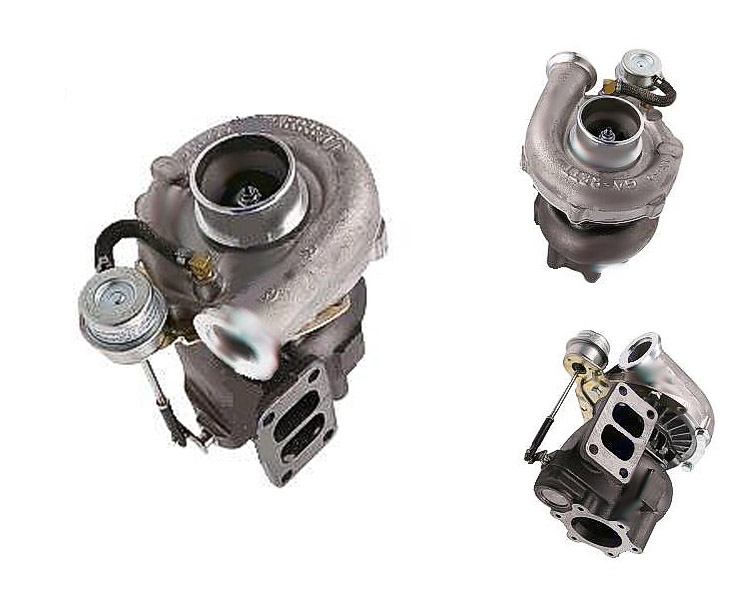

Iveco Truck SUPART TBP409 Turbocharger 465427-0002
Applications
1997- Iveco Truck Euro Cargo E23 150E23 with 8060.45.6000/6090/6200/6280/7200/7280 Engine
