| Part Number | 454007-5005S |
| Previous Version | 454007-0004, 454007-0005, 454007-0007 |
| OE number | 99465731, 98439642 |
| Description | EUROSTAR 190.50 Truck |
| CHRA | 447450-0005 (447450-5005S) |
| Turbo Model | T04E31 |
| Engine | 8285.22.014, 8280.42.050, 82800.42 |
| Engine Manufacturer | Iveco |
| Displacement | 17.2L, 17173 ccm, V8 Cylinders |
| KW | 480 - 512 |
| RPM Max | 2700 |
| Angle α (compressor housing) | 150º |
| Angle β (turbine housing) | 60º |
| Bearing Housing | 430027-0025 (186879, 186881) |
| Turbine Wheel | 446905-0005 |
| Comp. Wheel | 446618-0004 |
| Back plate | 408045-0061 |
| Heat shield Number | 409299-0001/409299-0000 |
| Repair Kit | 468265-0000 |
| Turbine Housing | 435435-0001 |
| Compressor Cover | 443219-0206 |
| Turbine Housing AR | 0.96 |
| Gasket (turbine inlet) | 409039-0001 |
| Gasket (turbine outlet) | 409196-0003 |
| Gasket oil inlet | 210023 |
| Gasket (oil outlet) | 210021 |
| Manufacturer | Honeywell-Garrett |
Iveco

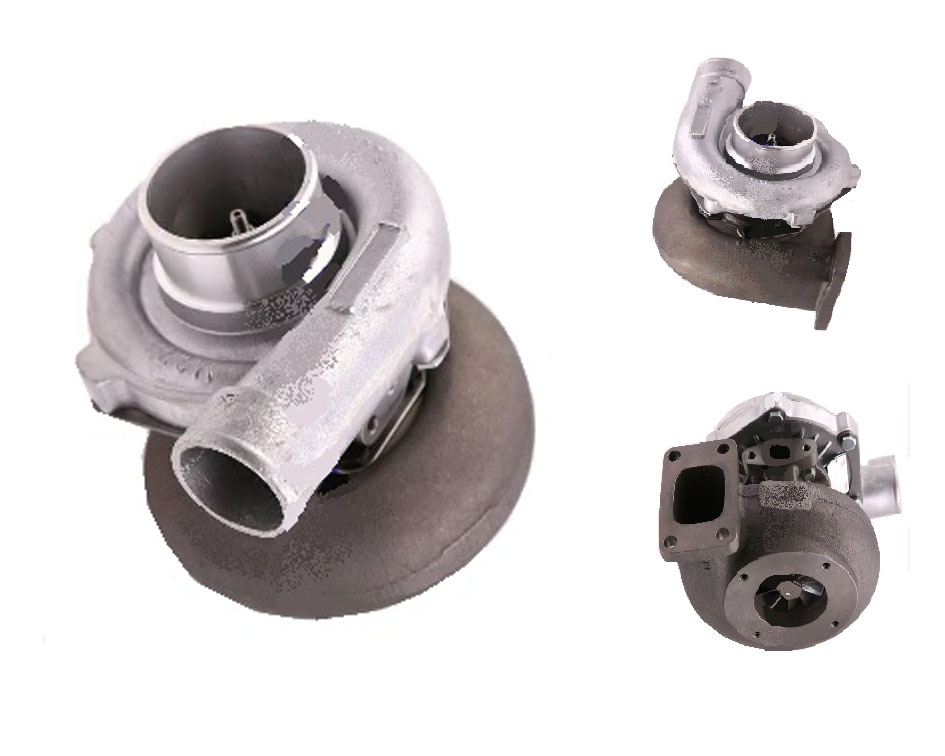

Iveco Truck SUPART T04E31 Turbocharger 454007-0005
Applications
1985- Iveco Truck Eurostar with 8285.22.014, 8280.42.050, 82800.42 Engine
