| Part Number | 3780206 |
| Previous Part Number | 3780207, 3767204, 3767205, 4033822, 4033822R, 4033822H |
| OE number | 05043759270, 05801604942, 5043759270, 5801604942, 5801604942R, 504375927, V007499 |
| Description | Tractor New Holland T9 series, Vermeer Agricultural Grinder |
| CHRA | |
| Turbo Model | HE551W, HE551, HE551M |
| Manufacturer Part Number | 3780207, 3767205, 3767204 |
| Engine | T4A, T9.450, T9.505, T9.560, T9.615, T.670 |
| Engine Manufacturer | Fiat |
| Fuel | Diesel |
| Angle α (compressor housing) | 253° |
| Angle β (turbine housing) | 345° |
| Bearing Housing | (Oil Cooled) |
| Turbine Wheel | 4040090 (Ind. 79.91 mm, Exd. 86.01 mm, 12 Blades) |
| Comp. Wheel | 3597224 (Ind. 70. mm, Exd. 109. mm, 8+8 Blades, Superback) |
| Repair Kit | 4030821 (403082100, 4030821H) |
| Manufacturer | HOLSET |
Iveco

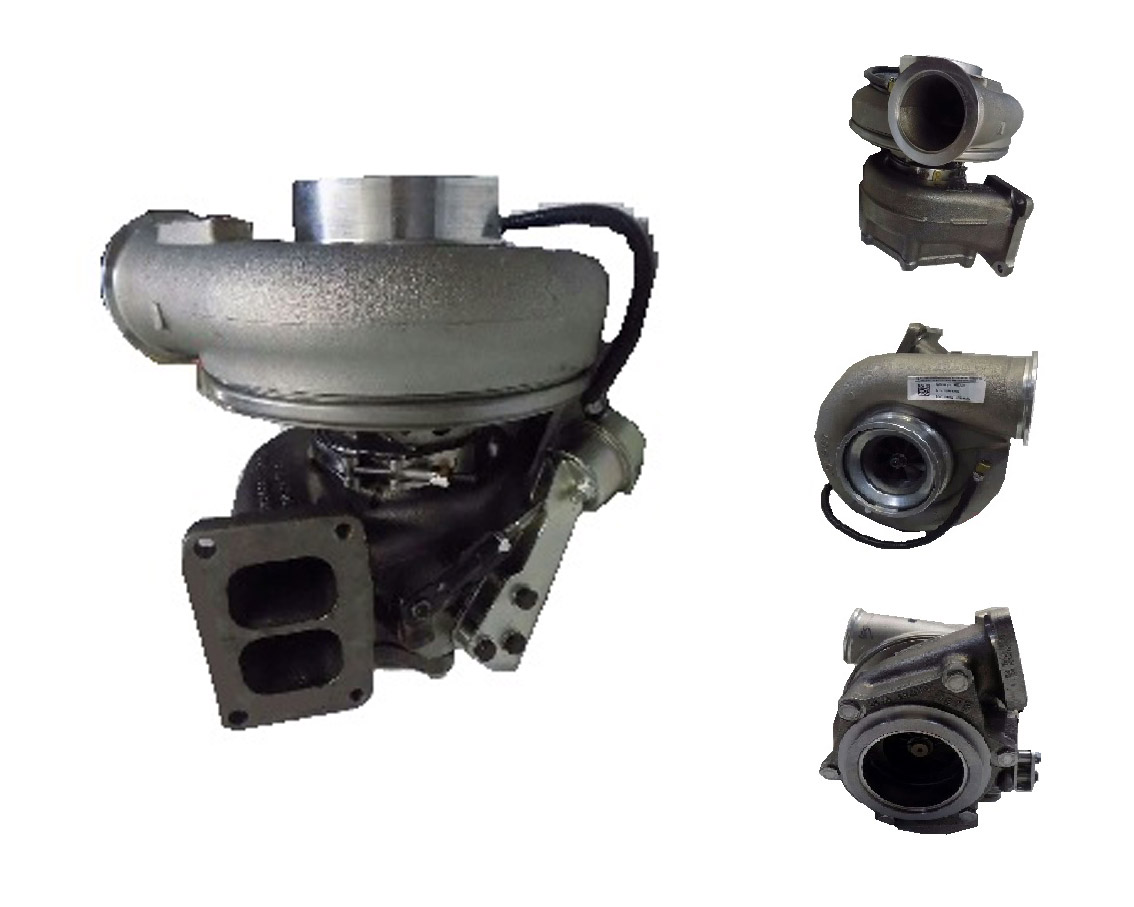

Iveco Tractor Agricultural SUPART HE551W Turbo 3780206
Applications
2006- Iveco Tractor with T4A Engine
2006- New Holland, CNH T9 series Tractor with T9.450, T9.505, T9.560, T9.615, T.670 Engine
