| Part Number | 52329883272 |
| Previous versions | 5232-988-3272, 5232 988 3272, 183500, 35336988 |
| OE number | 643582, 746265, 646452, 648.827, 51.09100-7087, 51091007087 |
| Description | MAN Industrial Engine Iveco Truck Industrial MAN / PEGASO |
| Manufacturer Part Number | 52329703272 |
| CHRA | 52327100011 (5232-710-0011)(1000030008) |
| Turbo Model | 4LGZ-352C27.22 |
| Engine | 96T, 9157, 96T, 9157/8, D2566MT |
| Engine Manufacturer | Iveco |
| Displacement | 11.41L, 11970 ccm |
| KW | 259/348/352/360 |
| Fuel | Diesel |
| Angle α (compressor housing) | 10/17/20/352º |
| Angle β (turbine housing) | 10/15/25/217º |
| Bearing housing | 52321500007 (Oil Cooled)(1900011009) |
| Turbine Wheel | 52321202125 (Ind. 86.5 mm, Exd. 96.5 mm, Trm 14.7, 12 Blades)(1100030003) |
| Comp. Wheel | 52321232014 (Ind. 59.6 mm, Exd. 94. mm, 7+7 Blades, Superback)(1200016150) |
| Back plate | 52321523001 (1800016004) |
| Heat Shield | 52321652003 (2030016143) |
| Repair Kit | 52327110004 (3545039, 3545660, 354660)(1300704750, 5000020110) |
| Turbine Housing | 52321016526 |
| Compressor Cover | 52321015036 |
| Turbine Housing AR | 27 |
| Gasket (turbine inlet) | 409038-0001 (409038-0000, 132040, 202873, 205396, 9749, 1S4295, 3500683, 210017-0000, 210835-0000, 7M7273)(Inox Steel)(1900000003) |
| Gasket (turbine outlet) | 210222 (Stainless Steel) |
| Gasket oil inlet | 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) |
| Gasket (oil outlet) | 210018 (3519763, 129120, 210018-0000, 201048, 157602, 3037537) |
| Gasket Kit | (2090505261) |
| Replaced by | 53369886451 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Iveco

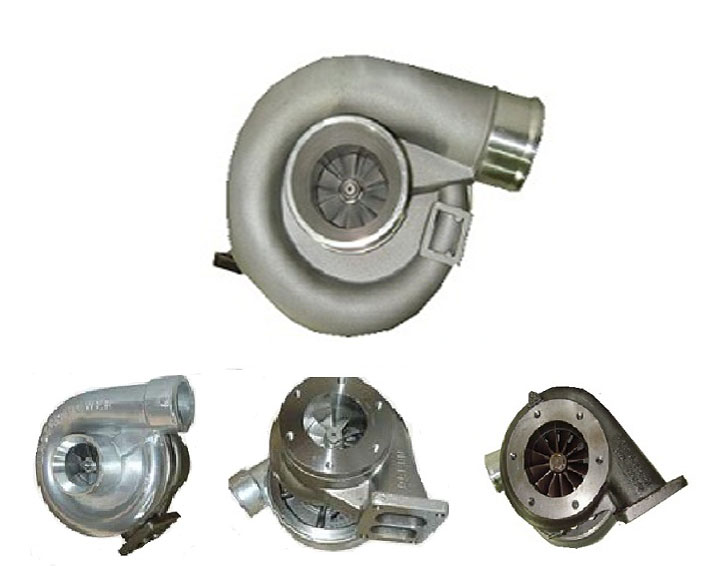

Iveco, MAN Truck SUPART 4LGZ Turbo 52329883272
Applications
1974-01 MAN 280/281/320/321/360/361 Industrial Engine with D2566MT Engine
1974-01 Iveco-Pegaso (Enasa) Truck, Special vehicle with 9157, 96T, 9157/8 Engine
