| Part Number | 465547-5002S |
| Previous Version | 465547-0001, 465547-0002, 465547-0003 |
| OE number | 4863440, 98420722, 99459813, 99459813R |
| Description | Tractor/Trucks HITACHI X100/120, Agricultural Loader, END FH200T, FH200W, FH200W Offway |
| CHRA | 408105-0281 (408105-0083, 408105-0161, 408105-5281S) |
| Turbo Model | TB4141 |
| Engine | 8065.25.220, 8065.25.0811083 |
| Engine Manufacturer | Iveco |
| Displacement | 5.5L, 5500 ccm |
| KW | 127/140 |
| RPM Max | 2300/2050 |
| Bearing Housing | 430027-0025 (312379, 407285-0027, 407285-0038, 407285-0064, 430027-0022, 430027-0048, 186881)(Oil Cooled)(1100030450, 1900011104B) |
| Turbine Wheel | 446905-0001 (317640, 407276-0005, 410188-0002, 410188-0005, 410188-0014,451309-0002)(AR57715, 310094A, 317640, 407276-0005, 410188-0014, 410188-0005, 314655)(Ind. 58.35 mm, Exd. 74.2 mm, Trm 46, 11 Blades)(1100040435, 1100030024) |
| Comp. Wheel | 409179-0028 (310099)(Ind. 43.63 mm, Exd. 69.9 mm, Exd. 5.12 mm, Trm 39, 8+8 Blades, Flatback)(1200016009) |
| Back plate | 408045-0034 (408206-0002, 408045-0051, 408045-0006, 4N6863, 104244-0000, 310010, 311708, 197340, AR101787)(1100040360, 1300016009) |
| Heat Shield | 409299-0000 (409299-0001)(311943, 7N0012, 3524773B)(2030016025) |
| Repair Kit | 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236)(1100040750, 5000010041) |
| Turbine Housing AR | 0.84 |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210022-0000, 210019, 2405022)(Inox Steel)(1900000006) |
| Gasket (turbine outlet) | 210315 (Stainless Steel) |
| Gasket (oil outlet) | 311496 (210021, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Gasket (oil inlet) | 147837 (210023, 55739, 3755739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 210023-0000)(1900000037) |
| Manufacturer | Honeywell-Garrett |
Iveco

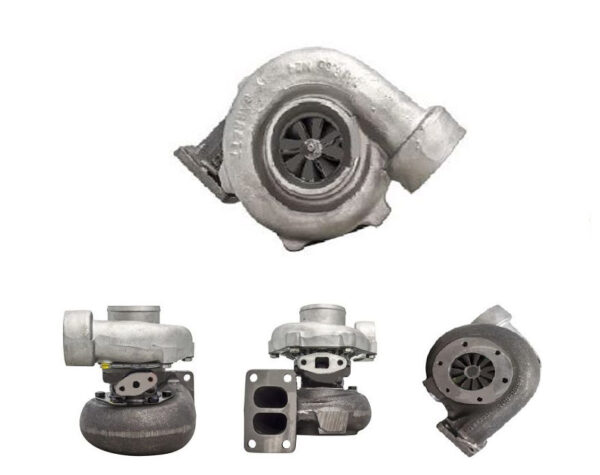

Iveco FH200T, FH200W Agricultural SUPART TB4141 Turbo 465547-0002
Applications
199- Iveco Agricultural Tractor with 8065.25.220, 8065.25.0811083 Engine
Hitachi FH200W Offway with 8065.25.081 Engine
