| Part Number | 53039880076 |
| Previous Version | 5303-988-0076, 53039880037 |
| OE number | 500358190, 500372213, 5001851013, 5001860076, 7485120059 |
| Year | 1999-04 |
| Description | Commercial |
| Manufacturer Part Number | 5303-970-0076, 53039700037, 5303-970-0037 |
| CHRA | 53037100523 (53037100522, 5303-710-0523)(1302003923, 1000030182) |
| Turbo Model | K03, K03-2076CCA6.88KCAV |
| Engine | 8140.43S.4000 Euro 3, 2,8CR-S2000, 8140.43B/8140.43C, 8140.43C |
| Displacement | 2.8L, 2800 ccm, 4 Cylinders |
| KW | 84/92/125 HP |
| RPM Max | 3600 |
| Fuel | Diesel |
| Angle α (compressor housing) | 213° |
| Angle β (turbine housing) | 165° |
| Bearing Housing | 53041500011 (53041500003, 53041500010, 53041500014)(1302004451) |
| Turbine Wheel | 53031205037 (53031205023)(Ind. 45. mm Exd. 40.5 mm, 9 Blades)(1302003435) |
| Comp. Wheel | 53041232201 (53041232024)(Ind. 38.5 mm Exd. 51. mm, Trm 2076, 6+6 Blades, Superback)(1302003406) |
| Back plate (O-ring type) | 53041515716 (53041515712)(1302003304, 1302003305) |
| Heat shield Number | 53031652000 (1302003340)(Recessed Top) |
| Repair Kit | 53037110001 (1302003751) |
| Turbine Housing | 53031009068 |
| Compressor Cover (O-ring type) | 53041015123 |
| Turbine Housing AR | 6 |
| Actuator | 58201104205 |
| Gasket (turbine inlet) | 210360 (Stainless Steel) |
| Gasket (turbine outlet) | 210350 (Stainless Steel) |
| Gasket (oil outlet) | 210243 (Paper) |
| Replaced By | 751578-5002S |
| NOTE | Drop-in replacement for K03-0037 internal parts not interchangeable |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Condition | Rebuilt |
Iveco

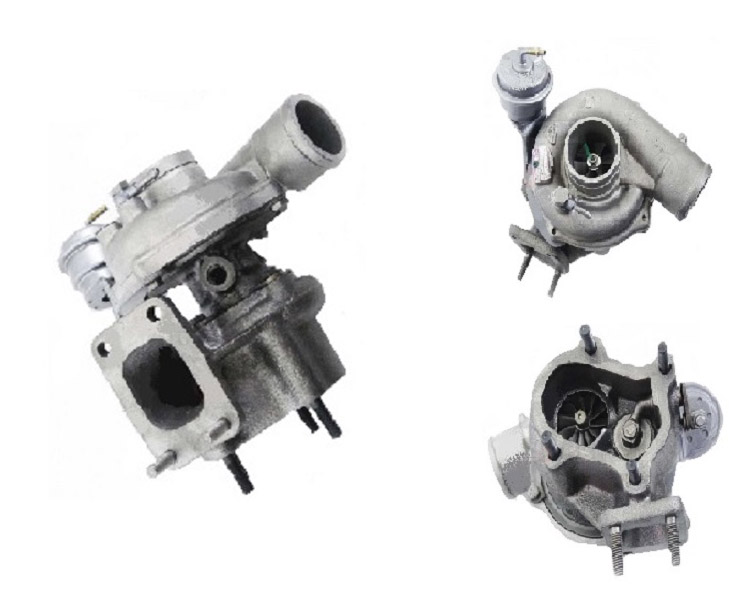

Iveco Commercial SUPART K03 Turbocharger 53039880076
Applications
1999-04 Iveco Commercial Daily 2.8L TD with 8140.43C.4000 Euro 3 Engine
