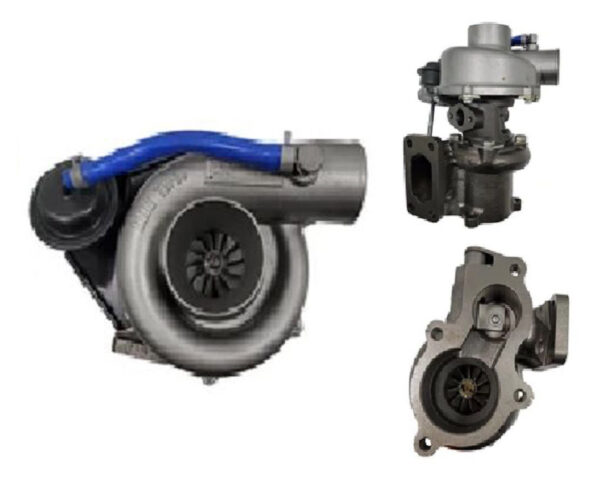

Isuzu Truck SUPART RHB6A Turbo VC140044 VI35

Applications

1986-87 Isuzu NPR with 4BD1-T Engine

Category: Tags: , , , , , ,
Part Number VC140044
Previous versions NB190021, NB190024, NB190031, NN190039, NB190032, NB190043, VA140017, VB140017, VA140043, VA140044, VB140044, VC140044
OE number 6T544, 8944777341, 8944574760, 8944102670, 2910106010, 8944224980, 8-94477-734-1, 6T-544, 8-94477-7340, 8944777340, 8941170213, 8-94117-0213, 8944574761
V-SPEC VI35, VI22
Year 1986-87
Description Truck NPR
Manufacturer Part Number VB140044
CHRA VA820011 $680.00
Turbo Model RHB6A-50001P11NRBRL392BZ, RHB6A-5000IP11NRBRL392BZ2
Engine 4BD1T, P186F-T
Displacement 4 Cylinders
Fuel Diesel
Angle α (compressor housing) 180º
Angle β (turbine housing) 84º
Bearing Housing (Oil Cooled)
Turbine Wheel (Ind. 39.56 mm, Exd. 58.9 mm, 11 Blades)
Comp. Wheel (Ind. 38.08 mm, Exd. 59. mm, 6+6 Blades, Flatback)
Repair Kit NN199835 (NN199833)(2445077)(509T-524, 509T-532)(1100862200)
Turbine Housing AR 11
Replaced by NN190039, VA140017
Manufacturer IHI
Condition Rebuilt
