| Part Number | VA240039 |
| Previous Version | VB240039, VC240039, VD240039, VG240039, VH240039 |
| OE number | 241002203A, 24100-2203A, 6T-574, 6T574, 24100-2204A, 24100-2201A-B, 24100-2214A, 24100-2204A, C61CAD-S0039B, C61CAD-S0039G, C61CADS0039B, C61CADS0039G, S241002203 |
| V-Spec. | VX53, VX54 |
| Description | Truck |
| CHRA | VA850013 (C61CAD-S0039C, C61CADS0039C)(1000040140) |
| Turbo Model | RHC62W-1183P20NABRLL5213CHBZ |
| Model | H07C-T(YF20), H07CT |
| Engine | YF20 |
| Engine Manufacturer | HINO |
| Fuel | Diesel |
| Angle α (compressor housing) | 115° |
| Angle β (turbine housing) | 77° |
| Bearing Housing | (Water Cooled)(1900011329) |
| Turbine Wheel | (Ind. 61.97 mm, Exd. 57.27 mm, Trm 11.5, 11 Blades)(1100016315) |
| Comp. Wheel | NH265520 (170268)(NH2655207)(Ind. 51.3 mm, Exd. 69.97 mm, Trm 6.14, 6+6 Blades, Superback)(1200016129) |
| Back plate | (1800016042B) |
| Heat shield Number | (171056)(2030016093) |
| Repair Kit | NH169843 (509T-538)(5000080050) |
| Turbine Housing AR | 17 |
| Manufacturer | Clover By IHI |
Hino

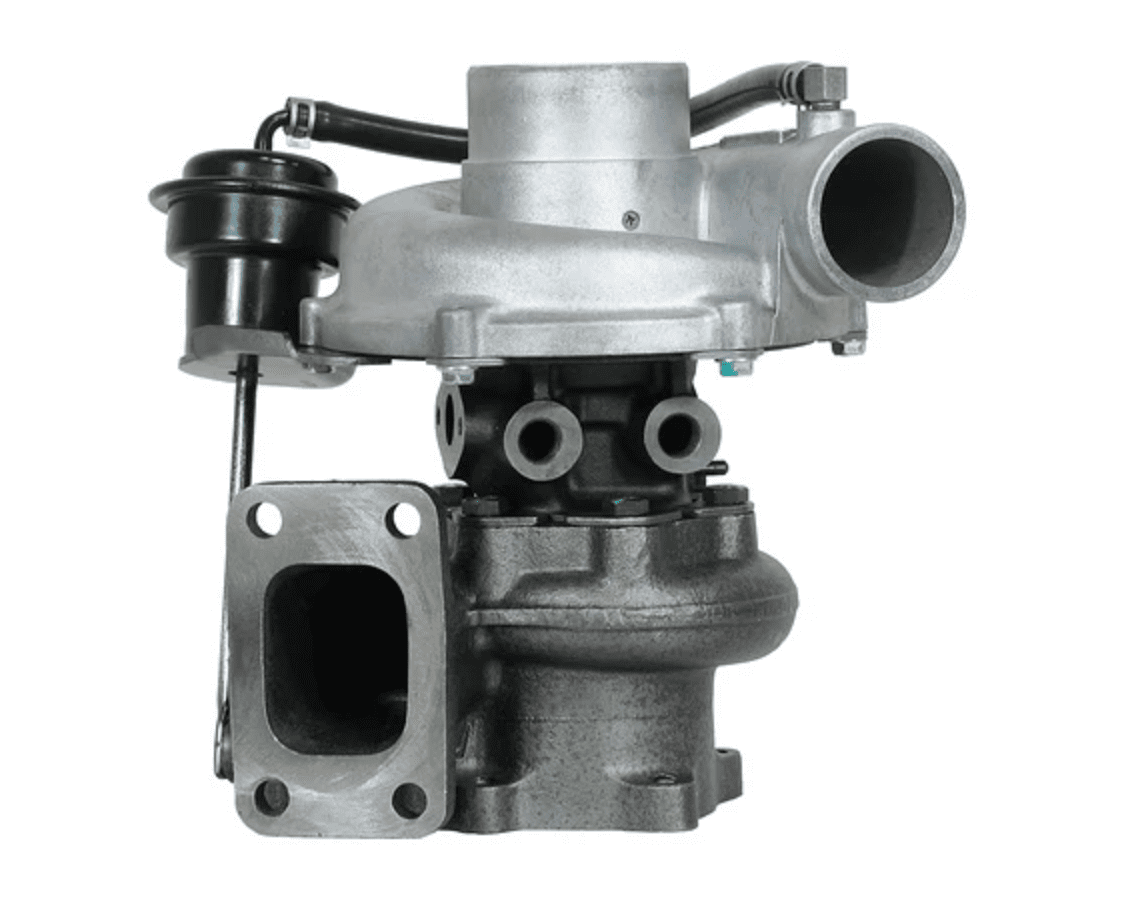

Hino Truck SUPART RHC62W Turbocharger VA240039 VX53
Applications
Hino Truck H07CT with H07C-T(YF20) Engine
