| Part Number | 53039880086 |
| Previous Version | 5303-988-0086, 5303 988 0086 |
| OE Number | 06F145701B, 06F145701C, 06F145701F |
| Year | 2003-11 |
| Description | Audi, Volkswagen |
| Manufacturer Part Number | 53039700086, 5303-970-0086, 5303 970 0086 |
| CHRA | 53037100525 (5303-710-0525)(1302003925) |
| Turbo Model | K03-2080DCB5.88KCAXK |
| Engine Model | AXX |
| KW | 147/200 |
| Fuel | Gasoline |
| Engine Speed | 6000 |
| Displacement | 2.0L, 1984 ccm, TFSI quer, transversal |
| Bearing housing (water-cooled) | 53041510003 (Water Cooled)(53041500011, 53041500004, 53041500014, 53041500010, 53041500003, 53041510001)(1302003463, 1900011235C) |
| Turbine Wheel | 53031205037 (53031205029, 53031205010, 53031205014, 53031205027, 53031205025, 53031205023, 53031205000, 53031205002, 53031205008, 53031205012, 53031205013, 53031205017)(Ind. 41.02 mm, Exd. 35.68 mm, Trm 8.15, 9 Blades)(1200016319, 1100030031) |
| Comp. Wheel | 53041232036 (53041232223, 53041232080)(Ind. 36.37 mm, Exd. 49.12 mm, Trm 4.42, 6+6 Blades, Superback)(1302003435, 1200016383) |
| Back plate | 53041515716 (1300016034) |
| Heat shield Number | 53031652000 (53041652000)(2030016011) |
| Repair Kit | 53037110001 (5000040005) |
| Turbine Housing with manifold | 53031009530 (53031009531, 53031009515) |
| Compressor Cover | 53041515225 (53041005032) |
| Turbine Housing AR | 5 |
| Actuator | 58251104168 |
| Settings Waste gate (pressure) | 0.35 bar |
| Settings Waste gate (lift rod) | 4.0 mm |
| Connecting adapter | 53041115900 (58061115806) |
| Compressor re-circulation valve (electrical) | 59001107018 (59001107044) |
| Frequency valve (electronic) | 59001096003 |
| Silencer | 53044830504 |
| NOTE | Inter Cooler, integrated manifold, Water Cooled bearing housing |
| Replaced by | 53039880105 |
| NOTE | Inter cooler, integrated manifold; water cooled bearing housing |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Audi, Volkswagen

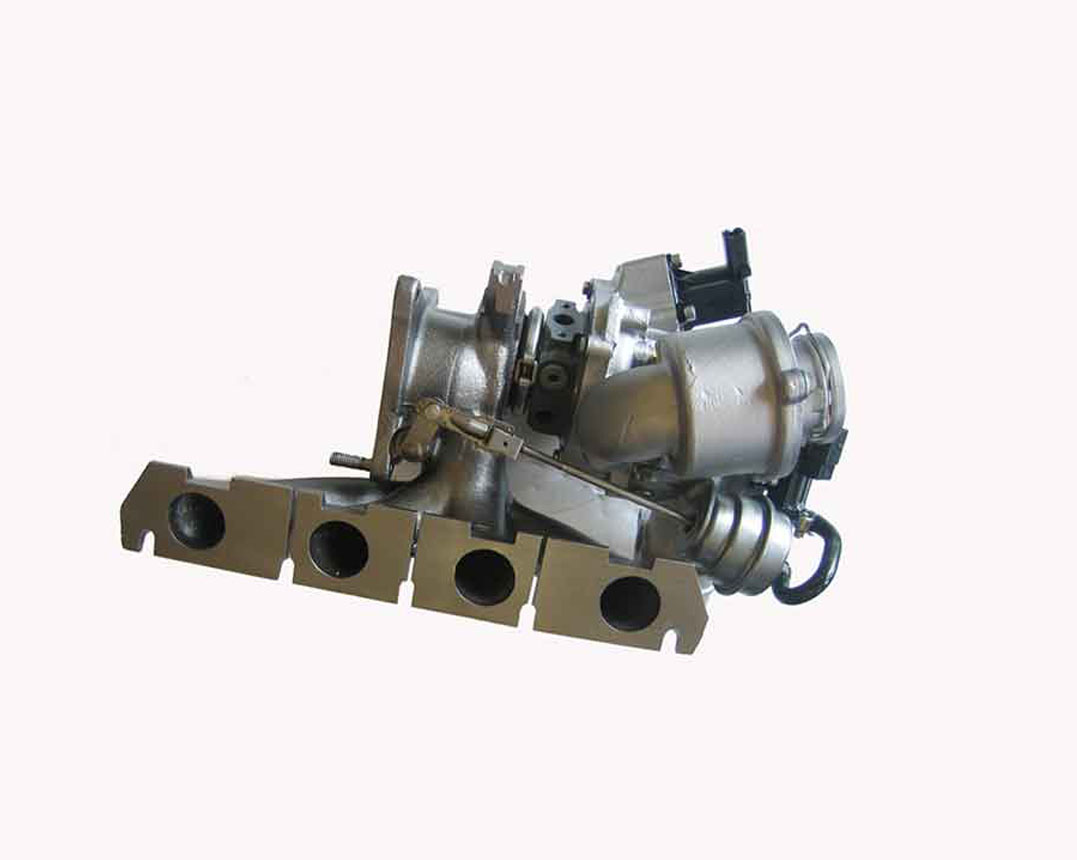

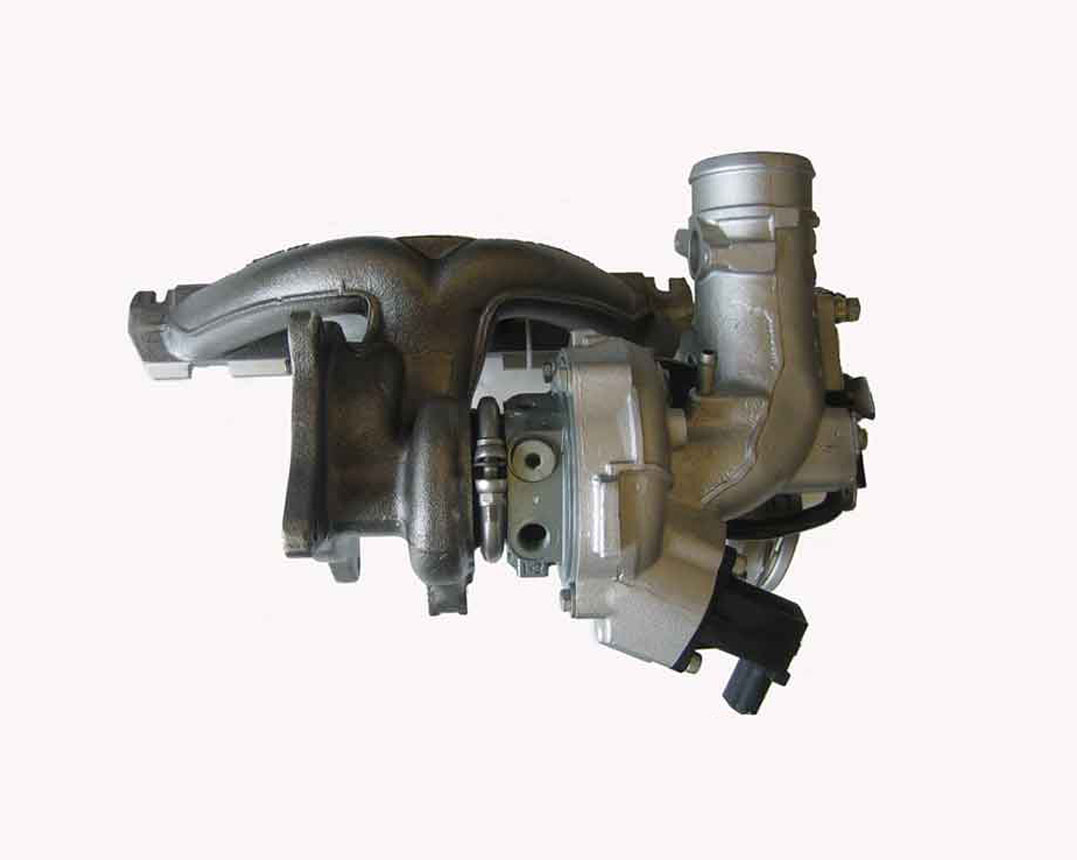

Audi, Volkswagen SUPART K03 Turbo 53039880086
Applications
2003- Audi A3 2.0L TFSI (8P/PA) Engine AXX
2003-08 Volkswagen Golf, Jetta V 2.0L TFSI
2006- Volkswagen Passat B6 2.0L TSI
