| Part Number | 53049880064 |
| Previous Version | 5304-988-0064, 5304 988 0064 |
| OE number | 06F145702C, 06F-145-702-C, 06F-145-702-CX, 06F-145-702-D, 06F145702C, 06F145702CX, 06F145702D |
| Year | 2003-10 |
| Description | Audi S3, TT, Seat Leon, Volkswagen Golf |
| Manufacturer Part Number | 53049700064, 5304-970-0064, 5304 970 0064 |
| CHRA | 53047100518 (5304-710-0518)(1302004918, 1000030240T) |
| Turbo Model | K04-2283DXBAA6.88GCAXM |
| Engine | 2.0L TFSI quer/transversal |
| Displacement | 2.0L, 1984 ccm, 4 Cylinders |
| KW | 195/265/206/280 HP |
| RPM Max | 6800 |
| Fuel | Gasoline |
| Bearing Housing | 53041500067 (53041500070)(water-cooled)(1302004463, 1900011235H) |
| Turbine Wheel | 53041206511 (53041202100, 53041202101, 53041205004, 53041205008, 53041205010, 53041205015, 53041205018, 53041206503, 53041206506)(Ind. 50.01 mm, Exd. 44.55 mm, Trm 6.3, 12 Blades)(1302004446, 1100-016-133) |
| Comp. Wheel | 53061232014 (Ind. 46.39 mm, Exd. 59.43 mm, Trm 4.64, 6+6 Blades, Superback)(1302004404, 1200016598T) |
| Compressor back plate (O-ring type) | 53041515721 (1302003308) |
| Heat Plate | 53041652009 (1302004345, 2030016064) |
| Repair Kit | 53047110000 (1303050754) |
| Turbine Housing with manifold | 53041009514 |
| Compressor Cover | 53041004903 (53041004907) |
| Turbine Housing AR | 6 |
| Actuator | 58251104227 |
| Silencer | 53041830001 (53041830002) |
| Frequency valve (Electronic) | 59001170401 |
| Gasket Kit | 215312 (2090010097M) |
| NOTE | Intercooler, Integrated manifold, Water Cooled bearing housing |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS DE |
Audi, Volkswagen

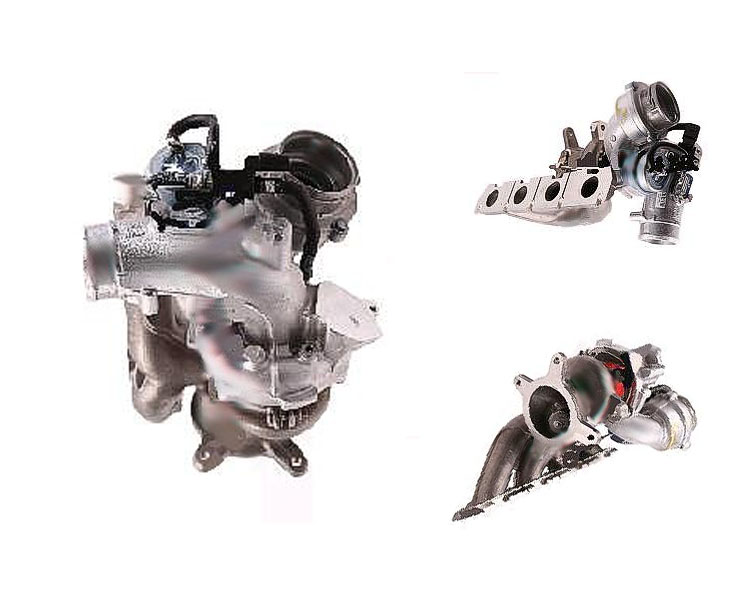

Audi, Seat, Volkswagen SUPART K04 Turbo 53049880064
Applications
2003-10 Audi S3 with 2.0L TFSI quer, transversal Engine
2003-10 Audi TT’S with 2.0L TFSI quer, transversal Engine
2003- Audi S3 2.0L TFSI (8P/PA) Engine BHZ
2003- Audi TT S 2.0L TFSI (8J) Engine BHZ
2003- Seat Leon 2.0L TFSI Cupra Engine BWJ, CDLD
2003- Volkswagen Golf V 2.0L TFSI Engine BYD
