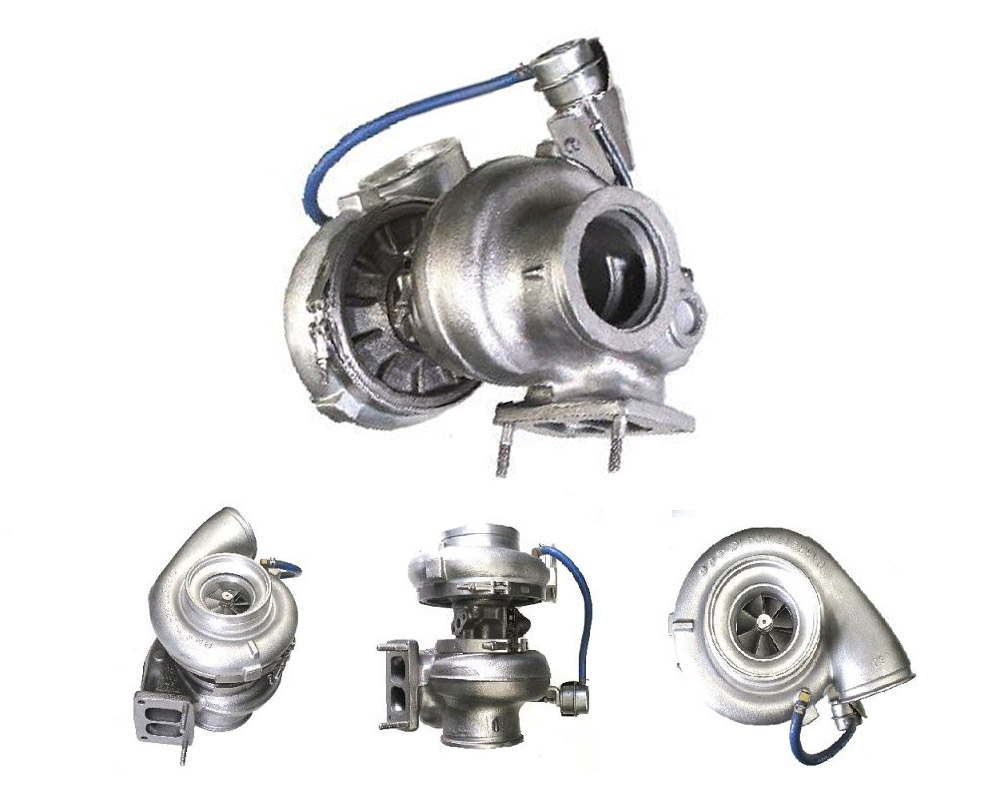

SUPART Volvo, Daewoo FH16 Bus, Truck GTA47 Turbo 728476-0001

Applications

2003- Volvo, Daewoo FH16 Bus, Truck FH16 with D16 Engine

Part Number 728476-5001S
Previous Part Number 728476-0001, 728476-1
OE number 8130020
Year 2003-
Description Truck VOLVO, DAEWOO
House Prod.Motor Volvo Power train
CHRA 712371-0082 (712371-5082S)
Turbo Model GTA4702BNS
Engine D16, D16 EuroIII
Engine Manufacturer Volvo
Displacement 16.0L, 16000 ccm, 6 Cylinders
KW 447/608 HP
RPM Max 1700
Fuel Diesel
Bearing Housing 706666-0020 (Oil Cooled)
Turbine Wheel 702892-0001 (702892-0014)(Ind. 93 mm, Exd. 84 mm, 10 Blades, Boreless shaft)
Comp. Wheel 714359-0012
Back plate 710269-0001
Heat shield Number 707843-0001
Repair Kit 468267-0011 (1102050750)
Turbine Housing 434468-0061
Compressor Cover 734070-0012 (452665-0001)
Turbine Housing AR 1.27
Actuator 434133-0104
Gasket Kits 215082
Gasket (turbine inlet) 132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003)
Gasket oil inlet 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (oil outlet) 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)
Manufacturer Honeywell-Garrett
