| Part Number | 3518613 |
| Previous Version | 1460033, 1545073, 1545074, 1545097, 1545098, 198639, 312540, 4033228, 3591971, 3521810, 4034103 |
| OE number | 518613, 518613-1, 5186131, 6886157, 8103605, 846652, 856652, 14600330Z, 5002205, 1900100148, 3521810, 3591971, 4033228, 4033228H |
| Description | Marine |
| Application | Marine, SEA-F10, Tractor N10, NL10 Truck, IVECO A.I.F.O Truck, Volvo Ackerman H16 Backhoe |
| CHRA | 3519065 (3519065H) |
| Turbo Model | H2C, H2C-8640AS/P22U3 |
| Manufacturer Part Number | 3523134, 3525994, 3527997, 3528018, 3528650, 3528651, 3530536, 3531719, 3534355, 3537639, 3591770, 3592736, 314071, 316752, 3518613, 3523022 |
| Engine Model | 8361SRM10, 8210SRM01, 8281SRM, 6F12SRY, TD100D, TD100, TD100G, THD100E, TD101G, TD100GA, TD101GB, THD100G |
| Engine Manufacturer | Baudouin, Iveco, Volvo |
| Displacement | 9600 ccm, 6 Cylinders |
| KW | 275/320/608 |
| Fuel | Diesel |
| Bearing Housing | 3525199 (Oil Cooled)(1900011204) |
| Turbine Wheel | 3522232 (Ind. 86. mm, Exd. 72. mm, Trm 12.5, 11 Blades)(1152302435, 1100016086) |
| Comp. Wheel | 3503304 (350330400)(Ind. 54. mm, Exd. 86. mm, Trm 5.95, 8+8 Blades, Superback) |
| Back plate | 3762564 (62564, 167543)(1253300300, 1800016038) |
| Heat shield Number | 3529846 (3533038)(2030016003) |
| Repair Kit | 3545653 (1152302750, 5000020017) |
| Turbine Housing | 3519901 |
| Compressor Cover | 3504487 |
| Gasket (turbine Inlet) | 409123-0002 (310694)(Inox Steel) |
| Gasket (turbine outlet) | 210239 (Stainless Steel) |
| Gasket oil inlet | 210023 (147837, 210021, 215234, 52231586500) |
| Gasket (oil outlet) | 210021 (148062, 311496) |
| Gasket Kit | 215149 (2090505108) |
| Substitute | 465922-0001, 465922-0002, 465922-0003, 465922-0011, 465922-0012, 465922-0013 |
| NOTE | Complete replacement turbo only, internal parts not interchangeable, to repair Holset original units use kit 316615 |
| Manufacturer | HOLSET |
Iveco, Volvo

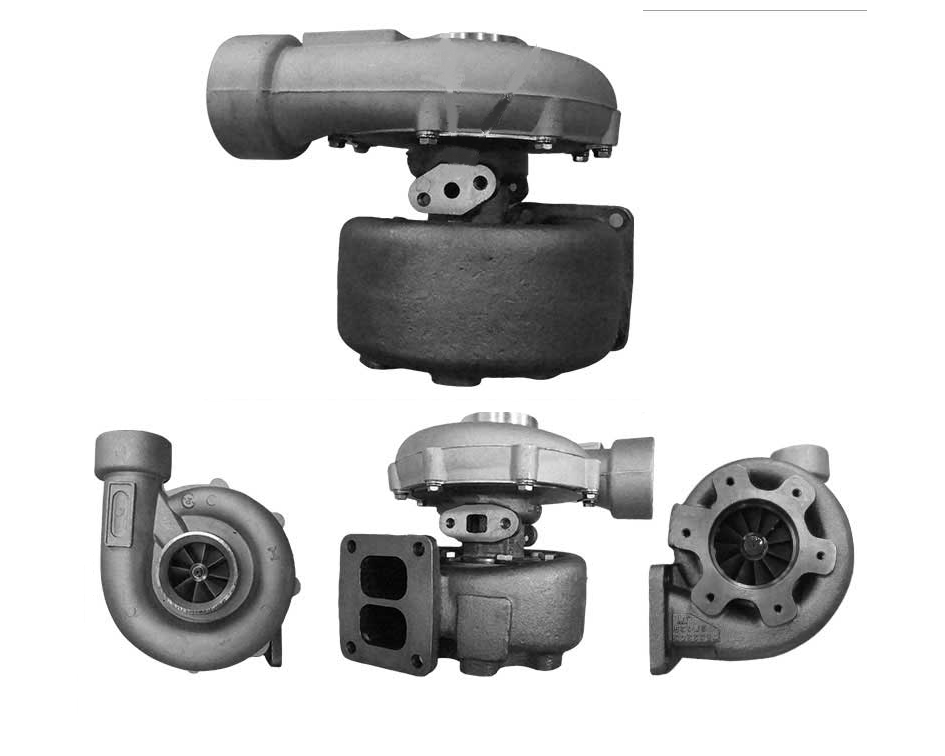

Baudouin, Iveco, Volvo Truck SUPART H2C Turbocharger 3518613
Applications
1998-12 Iveco Marine with 8210SRM01, 8361SRM10, 8281SRM Engine
1998-12 Baudouin with 6F12SRY Engine
1998-12 Volvo B10B/N10/F10 Truck with THD100E/TD100GA/TD101GB/TD100G Engine
1998-12 Volvo F10 Truck with TD100G Engine
